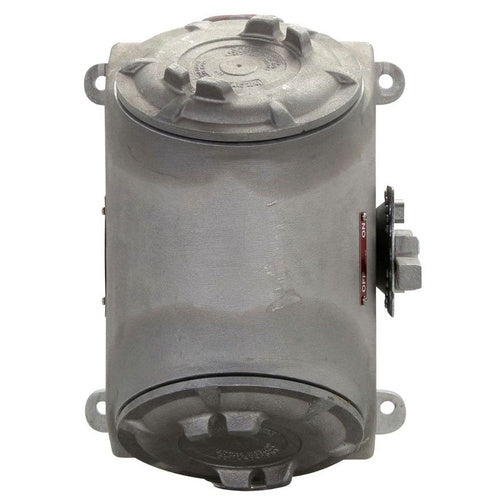

Crouse-Hinds FLS60364-1-44 60A Switch

Overview

Crouse-Hinds FLS60364-1-44 60A Switch

Product Specifications

• Catalog Description: EATON CROUSE-HINDS SERIES FLS ENCLOSED SWITCH, 60A, WITH SWITCH, NON-FUSED, 10 HP/15 HP/20 HP/40 HP/60 HP, COPPER-FREE ALUMINUM, THREE-PHASE, 1-1/2", VISIBLE BLADE MOTOR CIRCUIT SWITCH, 125-600 VAC/250 VDC
• Full Technical Description: 7-1/2 Inch W X 9-1/8 Inch D X 13-1/8 Inch H Size; 1-1/2 Inch Hub Size; Natural Copper Free Aluminum Enclosure Material; UL Approval; 125/240/480/600 VAC, 250 VDC Voltage Rating; Lug, Surface Mounting; Class I Div 1 and 2 Group C D, Class II Div 1 Group E F G, Class II Div 2 Group F G, Class III, NEMA 3/4/7C/7D/9E/9F/9G/12 Enclosure; 60 Ampere Current Rating; Threaded Cover Type; 10 HP at 125 VAC 3-Phase, 20 HP at 240 VAC 3-Phase, 40 HP at 480 VAC 3-Phase, 60 HP at 600 VAC 3-Phase, 15 HP at 250 VDC Power Rating; 3 Pole(S); Explosionproof, Dust-Ignitionproof, Raintight, Wet Location; External Handle Operator Type; Feed Through Hub Location; Non-Fusible Fuse Provision; FLS Model
• Manufacturer: EATON CROUSE-HINDS INDUSTRIAL
• Sub Category: Explosionproof Disconnect Switch
• Unspsc: 39121601
• UPC 12 Digit: 782274403359
• SKU Name: crsh fls60364144

Resources

• Product Spec Sheet
• Manufacturer Spec Sheet
