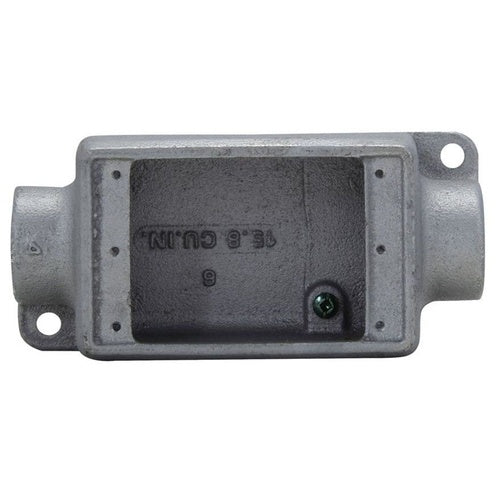

Crouse-Hinds FSC2-SCA Fs-Dev Box

Overview

Crouse-Hinds FSC2-SCA Fs-Dev Box

Product Specifications

• Catalog Description: EATON CROUSE-HINDS SERIES CONDULET FS DEVICE BOX, SHALLOW, SAND CAST ALUMINUM, SINGLE-GANG, C SHAPE, 3/4"
• Full Technical Description: Natural Copper Free Aluminum Material; 2-3/4 Inch; 2.75 Width in Inch; 6-1/32 Inch; 6.03125 Height in Inch; 1-7/8 Inch; 1.875 Depth in Inch; Shallow Shape; 3/4 Inch Hub Size; 2 Hub(S); 1 Gang(S); UL 514, CSA 22.2 Approval; Surface Mounting; .75 Hub Size in Inch; (2) Lugs Mounting Hardware; (1) Each End Hub Location; FSC Configuration Type; Condulet. Brand; Applicable Standard ANSI C33.84, Federal Specification W-C-5860; Conduit Type IMC, Threaded Rigid; Hub Type Tapered Threaded; Inclusion Ground Screw; Depth in Inch - Uom in; Height in Inch - Uom in; Hub Size in Inch - Uom in; Width in Inch - Uom in; FS Model
• Manufacturer: EATON CROUSE-HINDS INDUSTRIAL
• Sub Category: Cast Device Box
• Unspsc: 39121315
• UPC 12 Digit: 782274892085
• SKU Name: crsh fsc2sca

Resources

• Product Spec Sheet
• Manufacturer Spec Sheet
