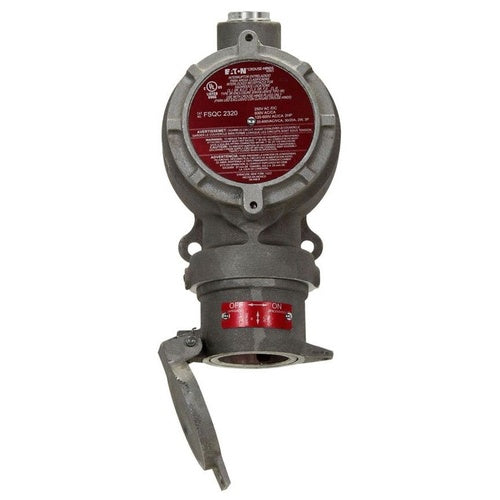

Crouse-Hinds FSQC3320 2W-3P Receptacle

Overview

Crouse-Hinds FSQC3320 2W-3P Receptacle

Product Specifications

• Catalog Description: EATON CROUSE-HINDS SERIES ARKTITE FSQC INTERLOCKED RECEPTACLE WITH SWITCH, 30A, THROUGH FEED, TWO-WIRE, THREE-POLE, BRASS CONTACTS, COPPER-FREE ALUMINUM, SPRING DOOR, 1", TWO-POLE SWITCH, 120-600 VAC
• Full Technical Description: Interlocked Type; Copper Free Aluminum Enclosure/Cover/Spring Door, Krydon Insulator, Brass Contact Material; 2 Wire(S); Class I Div 1 and 2 Group B C D, Class II Div 1 and 2 Group F G, Class III, NEMA Eemac 3/7B/7C/7D/9F/9G/12 Enclosure; 30 Ampere Current Rating; 3 Pole(S); Dust-Ignitionproof, Explosionproof, Raintight; 1 Inch Through Feed Hub Type; Spring Door; Extra Pole Grounding Style; ARKTITE[R] Brand; Used on Apj/Npj Arktite Plug; Application Wet Location; Includes 2-Pole Switch; FSQC Model
• Manufacturer: EATON CROUSE-HINDS INDUSTRIAL
• Sub Category: Pin and Sleeve Receptacle with Disconnect
• Unspsc: 39121406
• UPC 12 Digit: 782274417394
• SKU Name: crsh fsqc3320

Resources

• Product Spec Sheet
• Manufacturer Spec Sheet
