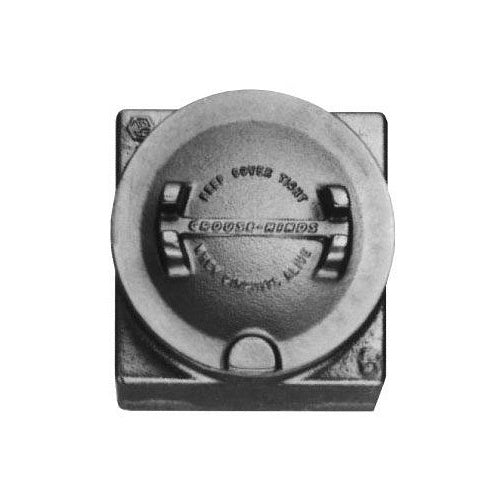

Crouse-Hinds GU 5X5X2-1/2 Junction Box

Overview

Crouse-Hinds GU 5X5X2-1/2 Junction Box

Product Specifications

• Catalog Description: EATON CROUSE-HINDS SERIES GUB JUNCTION BOX, 3-5/6" COVER OPENING, 4-15/16" X 4-15/16" X 4-1/8", FERALOY IRON ALLOY
• Full Technical Description: 4-15/16 Inch L X 4-15/16 Inch W X 4-1/8 Inch D Overall Size; 3-13/16 Inch L X 3-13/16 Inch W X 3-7/16 Inch D Inner Size; UL 1203, CSA C22.2 Approval; Class I Div 1 and 2 Group B C D, Class II Div 1 Group E F G, Class II Div 2 Group F G, Class III, NEMA 4/7B/7C/7D/9E/9F/9G, IP66 Enclosure; Threaded Cover Type; Feraloy Iron Alloy Body Material; Copper Free Aluminum Cover Material; Electrogalvanized Aluminum Acrylic Painted Body Finish; 3-5/6 Inch Cover Opening Diameter; Natural Cover Finish; Constructional Feature Explosionproof, Dust-Ignitionproof, Raintight, Watertight; Application Wet Location
• Manufacturer: EATON CROUSE-HINDS INDUSTRIAL
• Sub Category: Explosionproof Junction Box
• Unspsc: 39121332
• UPC 12 Digit: 782274458106
• SKU Name: crsh gu

Resources

• Product Spec Sheet
• Manufacturer Spec Sheet
