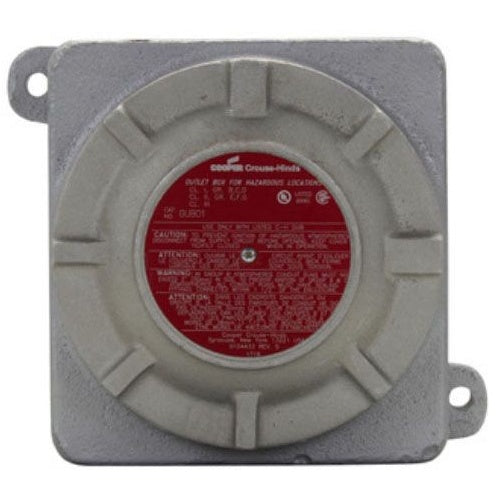

Crouse-Hinds GUB06 Junction Box

Overview

Crouse-Hinds GUB06 Junction Box

Product Specifications

• Catalog Description: EATON CROUSE-HINDS SERIES GUB JUNCTION BOX, 7" COVER OPENING, 8-1/2" X 10" X 6-7/8", FERALOY IRON ALLOY
• Full Technical Description: 10 Inch L X 8-1/2 Inch W X-7-3/8 Inch D Overall Size; 8-7/8 Inch L X-7-3/8 Inch W X 5-13/16 Inch D Inner Size; UL 1203, CSA C22.2 Approval; Class I Div 1 and 2 Group B C D, Class II Div 1 Group E F G, Class II Div 2 Group F G, Class III, NEMA 4/7B/7C/7D/9E/9F/9G, IP66 Enclosure; Threaded Cover Type; Feraloy Iron Alloy Body Material; Copper Free Aluminum Cover Material; Electrogalvanized Aluminum Acrylic Painted Body Finish; 7 Inch Cover Opening Diameter; Natural Cover Finish; Constructional Feature Explosionproof, Dust-Ignitionproof, Raintight, Watertight; Application Wet Location; GUB Model
• Manufacturer: EATON CROUSE-HINDS INDUSTRIAL
• Sub Category: Explosionproof Junction Box
• Unspsc: 39121331
• UPC 12 Digit: 782274470108
• SKU Name: crsh gub06
