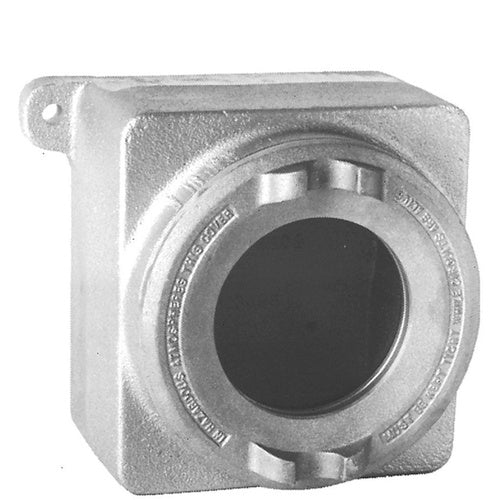

Crouse-Hinds GUB6191-1-20 Instrument Housing

Overview

Crouse-Hinds GUB6191-1-20 Instrument Housing

Product Specifications

• Catalog Description: EATON CROUSE-HINDS SERIES GUB INSTRUMENT HOUSING, TOP CONDUIT OPENING, FERALOY IRON ALLOY, 3/4", HOUSING WITH MOUNTING PLATE FOR STANDARD METERS, USED WITH GUB06 BASIC HOUSING, 4-9/16" MAXIMUM DEPTH
• Full Technical Description: 9-1/2 Inch W X 8-1/2 Inch D X 10 Inch H Size; AB-14/Ab-18/Ab-30/Ab-40/Db-14/Db-18/Db-30/Db-40 Series 4 Inch, K-241 Series 4 1/2 Inch Rectangular Flush Meter Used on; UL 886, CSA C22.2 Approval; Class I Div 1 and 2 Group D, Class II Div 1 Group E F G, Class II Div 2 Group F G, Class III, NEMA 3/7D/9E/9F/9G/12 Enclosure; Glass Window Cover Type; Feraloy. Iron Alloy Body Material; Dust Ignition Proof, Explosion Proof, Rain Tight; Natural Finished Copper Free Aluminum Cover Material; Electrogalvanized Aluminum Acrylic Painted Body Finish; Crouse-Hinds. Brand; GUB Model
• Manufacturer: EATON CROUSE-HINDS INDUSTRIAL
• Sub Category: Explosionproof Instrument Enclosure
• Unspsc: 39121331
• UPC 12 Digit: 782274472201
• SKU Name: crsh gub6191120

Resources

• Product Spec Sheet
• Manufacturer Spec Sheet
