Crouse-Hinds GUE Junction Box

Overview

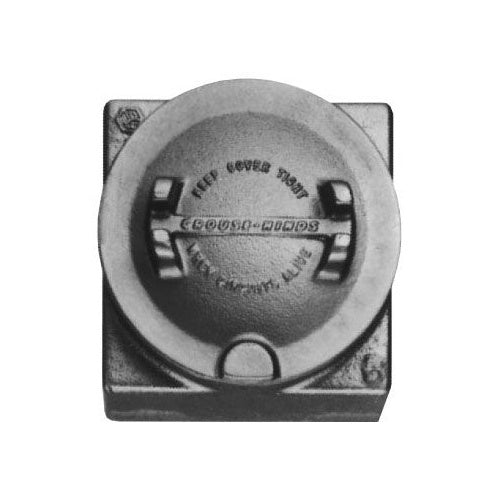

Crouse-Hinds GUE Junction Box

Product Specifications

• Catalog Description: EATON CROUSE-HINDS SERIES GUE JUNCTION BOX, 3-5/6" COVER OPENING, 5-5/16" X 5-5/16" X 5-3/8", FERALOY IRON ALLOY
• Full Technical Description: 5-5/16 Inch Length X 5-5/16 Inch Width X 5-3/8 Inch Depth Overall Size; 4-3/16 Inch Length X 4-3/16 Inch Width X 3-7/16 Inch Depth Inner Size; UL 1203, CSA C22.2 Approval; Strap Mounting; Class I Div 1 and 2 Group B C D, Class II Div 1 Group E F G, Class II Div 2 Group F G, Class III, NEMA 4/7B/7C/7D/9E/9F/9G, IP66 Enclosure; Threaded Cover Type; Feraloy Iron Alloy Body Material; Copper-Free Aluminum Cover Material; Electrogalvanized Aluminum Acrylic Painted Body Finish; 3-5/6 Inch Cover Opening Diameter; Natural Cover Finish; Constructional Feature Explosionproof, Dust Ignitionproof, Rain Tight, Water Tight; Includes Cover; Application Indoor, Outdoor, Wet Location; GUE Model
• Manufacturer: EATON CROUSE-HINDS INDUSTRIAL
• Sub Category: Explosionproof Junction Box
• Unspsc: 39121332
• UPC 12 Digit: 782274472409
• SKU Name: crsh gue
