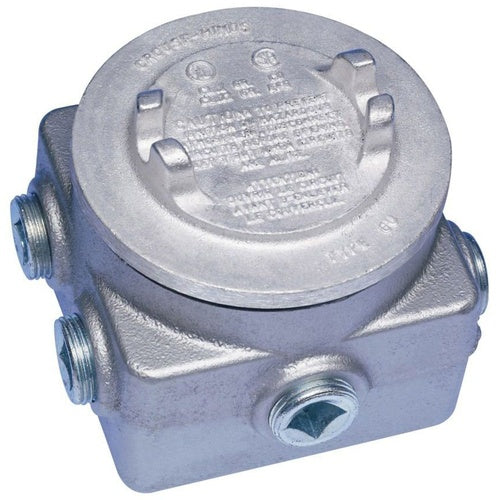

Crouse-Hinds GUP214 Junction Box

Overview

Crouse-Hinds GUP214 Junction Box

Product Specifications

• Catalog Description: EATON CROUSE-HINDS SERIES GUP JUNCTION BOX, (4) 3/4" BACK HUB, (2) 3/4" BOTTOM HUB, FERALOY IRON ALLOY, (1) 3/4" SIDE HUB, (2) 3/4" TOP HUB
• Full Technical Description: 4-1/8 Inch Length X 4-1/8 Inch Width X 2-3/4 Inch Depth Overall Size; 3/4 Inch (Bottom, Side), 3/4 Inch (Top) Hub Size; 5 Hub(S); UL 1203, CSA C22.2 Approval; Class I Div 1 and 2 Group C D, Class II Div 1 Group E F G, Class II Div 2 Group F G, Class III Enclosure; Threaded Cover Type; Feraloy Iron Alloy Body Material; Copper-Free Aluminum Cover Material; (2) Top, (2) Bottom, (1) Side Hub Location; Electrogalvanized Aluminum Acrylic Painted Body Finish; Natural Cover Finish; Constructional Feature Explosionproof, Dust Ignitionproof, Rain Tight; Application Indoor, Outdoor; GUP Model
• Manufacturer: EATON CROUSE-HINDS INDUSTRIAL
• Sub Category: Explosionproof Junction Box
• Unspsc: 39121332
• UPC 12 Digit: 782274477305
• SKU Name: crsh gup214

Resources

• Product Spec Sheet
• Manufacturer Spec Sheet
