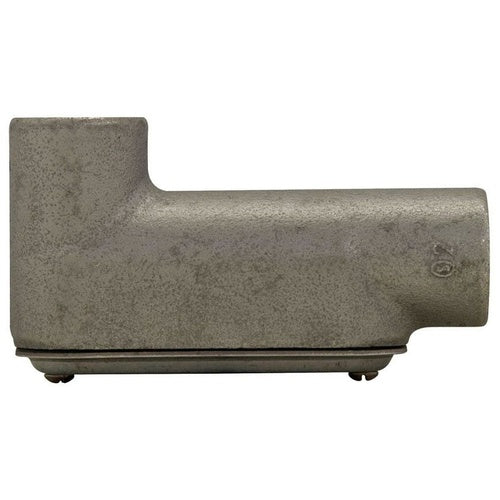

Crouse-Hinds LB27-CG Conduit Outlet Body

Overview

Crouse-Hinds LB27-CG Conduit Outlet Body

Product Specifications

• Catalog Description: EATON CROUSE-HINDS SERIES CONDULET FORM 7 SNAPPACK CONDUIT OUTLET BODY, GASKET AND COVER, FERALOY IRON ALLOY, LB SHAPE, 3/4"
• Full Technical Description: Electrogalvanized Aluminum Acrylic Painted Feraloy Iron Alloy (Body), Urethane (Gasket), Stainless Steel (Screw) Material; 5-3/16 Inch L X 1-9/16 Inch W X 2-1/2 Inch H Size; Rigid Conduit Used on; 3/4 Inch Hub Size; Threaded Installation; lb Configuration; 2 Hub(S); UL 514B, CSA 22.2 Approval; Snaptight, Electrogalvanized Sheet Steel Cover Type; 90 Deg Hub Location; Form 7 Form Type; Back Access Opening; CONDULET[R], SNAPPACK[TM] Brand; Applicable Standard Federal Specification WC-586D; Includes Cover, Gasket, Screw
• Manufacturer: EATON CROUSE-HINDS INDUSTRIAL
• Sub Category: Conduit Body
• Unspsc: 39131708
• UPC 12 Digit: 782274141060
• SKU Name: crsh lb27cg

Resources

• Product Spec Sheet
• Manufacturer Spec Sheet
