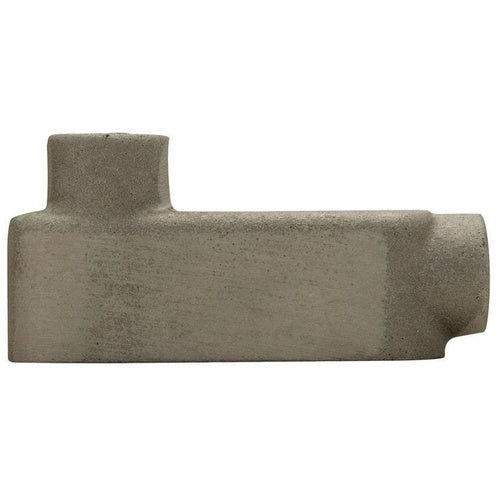

Crouse-Hinds LB49 1-1/4" Alum Lb-Type Conduit Body

Overview

Crouse-Hinds LB49 1-1/4" Alum Lb-Type Conduit Body

Product Specifications

• Catalog Description: EATON CROUSE-HINDS SERIES CONDULET MARK 9 CONDUIT OUTLET BODY, COPPER-FREE ALUMINUM, LB SHAPE, 1-1/4"
• Full Technical Description: Natural Copper-Free Aluminum (Body) Material; 7-3/32 Inch Length X 2-3/16 Inch Width X 3-5/8 Inch Height Size; Rigid Conduit Used on; 1-1/4 Inch Hub Size; Threaded Installation; lb Configuration; 2 Hub(S); UL 514B/50E, CSA C22.2 Approval; Natural Copper-Free Aluminum, Self-Retaining Stainless Steel Cover Screw Cover Type; 90 Degree Hub Location; Mark 9 Form Type; Back Access Opening; CONDULET[R] Brand; Enclosure Rating NEMA 3R/12; Application Non-Hazardous Location; Applicable Standard Federal Specification WC-586D, Nec/Cec; LB Model
• Manufacturer: EATON CROUSE-HINDS INDUSTRIAL
• Sub Category: Conduit Body
• Unspsc: 39131708
• UPC 12 Digit: 782274514703
• SKU Name: crsh lb49

Resources

• Product Spec Sheet
• Manufacturer Spec Sheet
