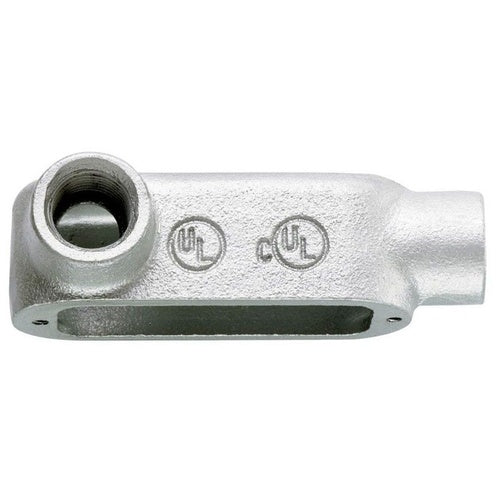

Crouse-Hinds LL350M 3-1/2" Malleable Ll-Type Conduit Body

Overview

Crouse-Hinds LL350M 3-1/2" Malleable Ll-Type Conduit Body

Product Specifications

• Catalog Description: EATON CROUSE-HINDS SERIES CONDULET FORM 5 CONDUIT OUTLET BODY, MALLEABLE IRON, LL SHAPE, 3-1/2"
• Full Technical Description: Electrogalvanized Aluminum Acrylic Painted Malleable Iron (Body), Natural Finished Neoprene (Gasket), Natural Finished Stainless Steel (Screw) Material; 16.5 Inch L X 6.81 Inch W X 7.13 Inch H Size; Rigid Conduit Used on; 3-1/2 Inch Hub Size; Threaded, Set Screw Installation; LL Configuration; 2 Hub(S); UL 514B, CUL, CSA C22.2 Approval; Electrogalvanized Sheet Steel, Screw-on Cover Type; 90 Deg Hub Location; Form 5 Form Type; Left Side Access Opening; CONDULET[R] Brand; LL Model
• Manufacturer: EATON CROUSE-HINDS INDUSTRIAL
• Sub Category: Conduit Body
• Unspsc: 39131708
• UPC 12 Digit: 782274756219
• SKU Name: crsh ll350m
