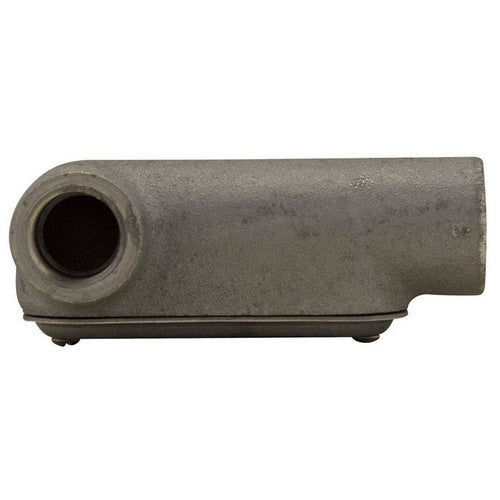

Crouse-Hinds LL47-CG Conduit Outlet Body

Overview

Crouse-Hinds LL47-CG Conduit Outlet Body

Product Specifications

• Catalog Description: EATON CROUSE-HINDS SERIES CONDULET FORM 7 SNAPPACK CONDUIT OUTLET BODY, GASKET AND COVER, FERALOY IRON ALLOY, LL SHAPE, 1-1/4"
• Full Technical Description: Electrogalvanized Aluminum Acrylic Painted Feraloy Iron Alloy (Body), Urethane (Gasket), Stainless Steel (Cover Screw) Material; 6-1/2 Inch Length X 3-3/16 Inch Width X 2-5/16 Inch Height Size; Conduit Used on; 1-1/4 Inch Hub Size; Taper Threaded Installation; LL Configuration; 2 Hub(S); UL 514B/50E, CSA C22.2 Approval; Electrogalvanized Sheet Steel, Snap Tight Cover Type; 90 Degree Hub Location; Form 7 Form Type; Left Side Access Opening; CONDULET[R], SNAPPACK[TM] Brand; Applicable Standard Federal Specification WC-586D; LL Model
• Manufacturer: EATON CROUSE-HINDS INDUSTRIAL
• Sub Category: Conduit Body
• Unspsc: 39131708
• UPC 12 Digit: 782274141268
• SKU Name: crsh ll47cg

Resources

• Product Spec Sheet
• Manufacturer Spec Sheet
