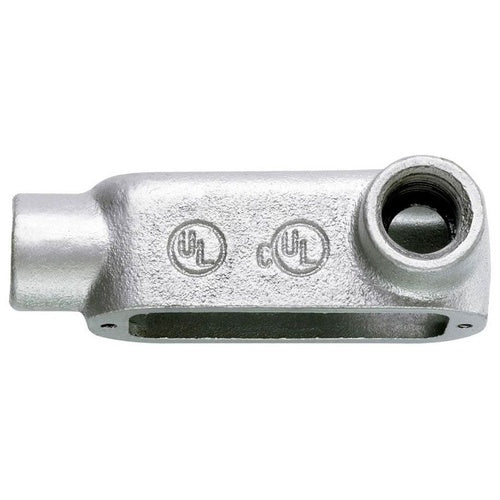

Crouse-Hinds LR350M 3-1/2" Malleable Lr-Type Conduit Body

Overview

Crouse-Hinds LR350M 3-1/2" Malleable Lr-Type Conduit Body

Product Specifications

• Catalog Description: EATON CROUSE-HINDS SERIES CONDULET FORM 5 CONDUIT OUTLET BODY, MALLEABLE IRON, LR SHAPE, 3-1/2"
• Full Technical Description: Electrogalvanized Aluminum Acrylic Painted Malleable Iron (Body), Natural Finished Neoprene (Gasket), Natural Finished Stainless Steel (Screw) Material; 6.25 Inch L X 5.62 Inch W X 6.1 Inch H Size; Rigid Conduit Used on; 3-1/2 Inch Hub Size; Threaded, Set Screw Installation; LR Configuration; 2 Hub(S); UL 514B, CUL, CSA C22.2 Approval; Electrogalvanized Sheet Steel, Screw-on Cover Type; 90 Deg Hub Location; Form 5 Form Type; Right Side Access Opening; CONDULET[R] Brand; LR Model
• Manufacturer: EATON CROUSE-HINDS INDUSTRIAL
• Sub Category: Conduit Body
• Unspsc: 39131708
• UPC 12 Digit: 782274756110
• SKU Name: crsh lr350m

Resources

• Product Spec Sheet
• Manufacturer Spec Sheet
