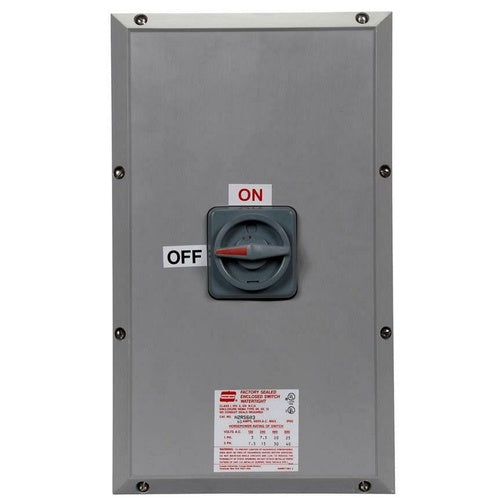

Crouse-Hinds N2RS1003 100A 3P Enclosure Switch

Overview

Crouse-Hinds N2RS1003 100A 3P Enclosure Switch

Product Specifications

• Catalog Description: EATON CROUSE-HINDS SERIES N2RS ENCLOSED SWITCH, 100A, WITH THREE-POLE SWITCH, NON-FUSED, 20 HP/40 HP/60 HP, KRYDON FIBERGLASS-REINFORCED POLYESTER, THREE-PHASE, 2-1/2", FACTORY SEALED MOTOR CIRCUIT SWITCH, 240-600 VAC
• Full Technical Description: Non Fusible Type; 11.39 Inch W X 10.22 Inch D X 19.39 Inch H Size; 2-1/2 Inch Hub Size; High Impact Krydon. Fiberglass Reinforced Polyester Enclosure Material; UL 508, UL 1604, CSA C22.2, CUL Approval; 600 VAC Voltage Rating; Feet Mounting; 100 Ampere Current Rating; 20 HP at 240 VAC, 40 HP at 480 VAC, 60 HP at 600 VAC Power Rating; 3 Pole(S); Nylon Rotary Handle Operator Type; Class I Div 2 Group B C D, NEMA 3/4X/7B/7C/7D/12, IP65 Enclosure Type; 3 Phase Circuit Configuration; Crouse-Hinds. Brand; N2RS Model
• Manufacturer: EATON CROUSE-HINDS INDUSTRIAL
• Sub Category: Enclosed Rotary Safety/Disconnect Switch
• Unspsc: 39121601
• UPC 12 Digit: 782274958996
• SKU Name: crsh n2rs1003

Resources

• Product Spec Sheet
• Manufacturer Spec Sheet
