Crouse-Hinds N2RS603 60A 3P Enclosure Switch

Overview

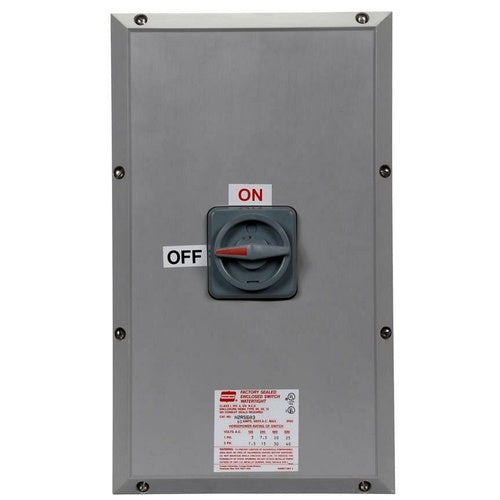

Crouse-Hinds N2RS603 60A 3P Enclosure Switch

Product Specifications

• Catalog Description: EATON CROUSE-HINDS SERIES N2RS ENCLOSED SWITCH, 60A, WITH THREE-POLE SWITCH, NON-FUSED, 15 HP/30 HP/40 HP, KRYDON FIBERGLASS-REINFORCED POLYESTER, THREE-PHASE, 1-1/2", FACTORY SEALED MOTOR CIRCUIT SWITCH, 240-600 VAC
• Full Technical Description: Non-Fusible Type; 11.39 Inch W X 10.22 Inch D X 19.39 Inch H Size; 1-1/2 Inch Hub Size; High Impact Krydon Fiberglass Reinforced Polyester Enclosure Material; UL 508, UL 1604, CSA C22.2, CUL Approval; 600 VAC Voltage Rating; Feet Mounting; 60 Ampere Current Rating; 15 HP at 240 VAC 3-Phase, 30 HP at 480 VAC 3-Phase, 40 HP at 600 VAC 3-Phase Power Rating; 3 Pole(S); Nylon Rotary Handle Operator Type; Class I Div 2 Group B C D, NEMA 3/4X/7B/7C/7D/12, IP65 Enclosure Type; 3-Phase Circuit Configuration; KRYDON[R] Brand; Application Industrial, Hazardous Location; Constructional Feature Corrosion Resistant, Watertight; N2RS Model
• Manufacturer: EATON CROUSE-HINDS INDUSTRIAL
• Sub Category: Enclosed Rotary Safety/Disconnect Switch
• Unspsc: 39122205
• UPC 12 Digit: 782274959009
• SKU Name: crsh n2rs603

Resources

• Product Spec Sheet
• Manufacturer Spec Sheet
