Crouse-Hinds N2S1310 3Pb Control Station

Overview

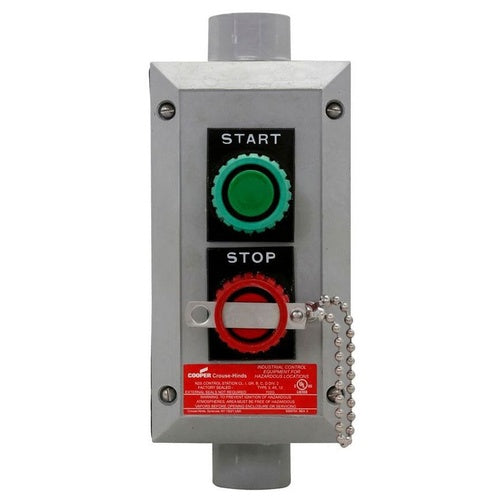

Crouse-Hinds N2S1310 3Pb Control Station

Product Specifications

• Catalog Description: EATON CROUSE-HINDS SERIES N2S PUSHBUTTON CONTROL STATION, WITH PUSHBUTTONS, WITH ONE 1/2" HUB, KRYDON FIBERGLASS-REINFORCED POLYESTER, SINGLE-GANG, 3, DEAD END, 1/2"
• Full Technical Description: Dead End Type; 3NO-3NC, Momentary Contact Configuration; 1/2 Inch Hub Size; Krydon Fiberglass Reinforced Polyester Enclosure Material; UL, CSA C22.2 Approval; 600 VAC Voltage Rating; Class I Div 2 Group B C D, NEMA 3/4X/7B/7C/7D/12 Enclosure; Explosionproof, Watertight, Weatherproof, Dusttight; Front Operated Pushbutton Operator Type; 3 Circuit(S); 3 Element(S); KRYDON[R] Brand; Application Chemical Plant, Corrosive/Damp/Wet Location, Indoor/Outdoor, Petroleum Refinery, Process Industry; N2S Model
• Manufacturer: EATON CROUSE-HINDS INDUSTRIAL
• Sub Category: Explosionproof Pushbutton Control Station
• Unspsc: 39122217
• UPC 12 Digit: 782274133553
• SKU Name: crsh n2s1310

Resources

• Product Spec Sheet
• Manufacturer Spec Sheet
