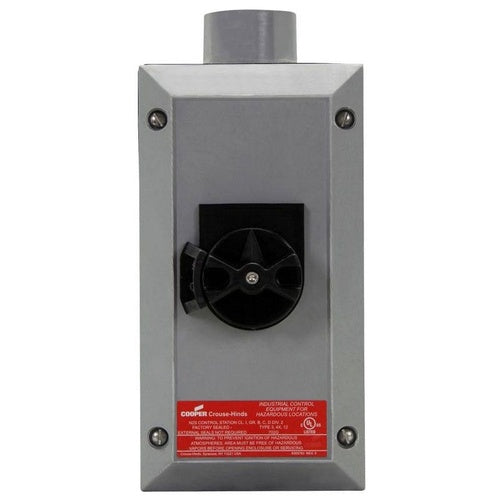

Crouse-Hinds N2S2123 Corrosion Resistant Pushbutton Station

Overview

Crouse-Hinds N2S2123 Corrosion Resistant Pushbutton Station

Product Specifications

• Catalog Description: EATON CROUSE-HINDS SERIES N2S SELECTOR SWITCH CONTROL STATION, WITH SELECTOR SWITCH, WITH ONE 3/4" HUB, KRYDON FIBERGLASS-REINFORCED POLYESTER, SINGLE-GANG, 3, DEAD END, THREE-POSITION, TWO-CIRCUIT, 3/4", 600 VAC
• Full Technical Description: Dead End Type; 4NO-2NC Contact Configuration; (1) 3/4 Inch Hub Size; Krydon Fiberglass Reinforced Polyester Enclosure Material; UL 508, CSA C22.2 Approval; 600 VAC Voltage Rating; Class I Div 2 Group B C D, NEMA 3/4X/7B/7C/7D/12 Enclosure; Explosionproof, Watertight, Weatherproof, Dusttight, Corrosion Resistant; Knob Operator Type; 3 Position(S); 2 Circuit(S); KRYDON[R] Brand; Application Chemical Plant, Corrosive/Damp/Wet Location, Indoor/Outdoor, Petroleum Refinery, Process Industry; N2S Model
• Manufacturer: EATON CROUSE-HINDS INDUSTRIAL
• Sub Category: Explosionproof Selector Switch Control Station
• Unspsc: 39122217
• UPC 12 Digit: 782274802404
• SKU Name: crsh n2s2123

Resources

• Product Spec Sheet
• Manufacturer Spec Sheet
