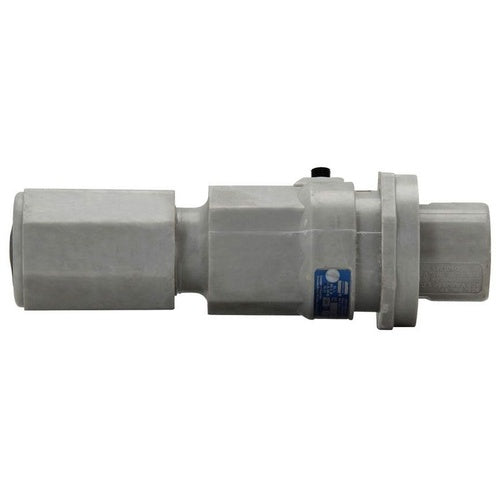

Crouse-Hinds NPJ10386 2W 3P Receptacle

Overview

Crouse-Hinds NPJ10386 2W 3P Receptacle

Product Specifications

• Catalog Description: EATON CROUSE-HINDS SERIES ARKTITE NPJ PLUG, 100A, TWO-WIRE, THREE-POLE, 0.93-1.21", 50-400 HZ, STYLE 2, KRYDON FIBERGLASS-REINFORCED POLYESTER, 600 VAC/250 VDC
• Full Technical Description: Circuit Breaking, Conveyor, Motor, Pump, Welder Type; Natural Krydon. Material; 0.93 Inch min. Cable Outer Diameter; 1.21 Inch Max. Cable Outer Diameter; 2 Wire(S); UL 1010, UL 1682, CSA C22.2 Approval; 600 VAC at 50 to 400 Hz/250 VDC Voltage Rating; 100 Ampere Current Rating; 3 Pole(S); Corrosion Resistant, Dirt Tight, Dust Tight, Moisture Resistant; 2, Extra Pole Grounding Style; Arktite. Brand; Area of Application Cement Plant, Chemical Plant, Food Processing Plant, Pulp and Paper Plant, Sewage Plant; Color Gray; Enclosure NEMA 4X; Wet and Damp Location When Used With Spring Door or Snap on Cap, Water Tight When Used With Qe Threaded Cap; NPJ Model
• Manufacturer: EATON CROUSE-HINDS INDUSTRIAL
• Sub Category: Pin And Sleeve Plug
• Unspsc: 39121402
• UPC 12 Digit: 782274746173
• SKU Name: crsh npj10386
