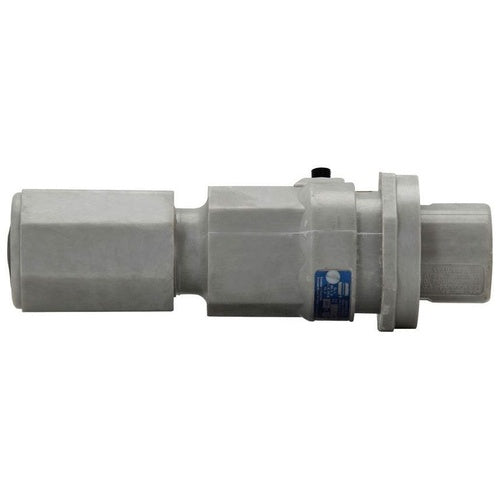

Crouse-Hinds NPJ3484 3W-4P Plug

Overview

Crouse-Hinds NPJ3484 3W-4P Plug

Product Specifications

• Catalog Description: EATON CROUSE-HINDS SERIES ARKTITE NPJ PLUG, 30A, THREE-WIRE, FOUR-POLE, 0.70-0.85", 50-400 HZ, STYLE 2, KRYDON FIBERGLASS-REINFORCED POLYESTER, 600 VAC/250 VDC
• Full Technical Description: Circuit Breaking, Conveyor, Motor, Pump, Welder Type; Natural Krydon Finished Fiberglass Reinforced Polyester Material; 0.7 Inch min. Cable Outer Diameter; 0.85 Inch Max. Cable Outer Diameter; 3 Wire(S); UL 1682, CSA C22.2 Approval; 600 Vac/250 VDC at 50 to 400 Hz Voltage Rating; 30 Ampere Current Rating; 4 Pole(S); Corrosion Resistant, Moisture Resistant, Dirttight, Dusttight, Watertight; 2, Extra Pole Grounding Style; ARKTITE[R] Brand; Hub Size 1 Inch; Enclosure NEMA 4X; NPJ Model
• Manufacturer: EATON CROUSE-HINDS INDUSTRIAL
• Sub Category: Pin and Sleeve Plug
• Unspsc: 39121402
• UPC 12 Digit: 782274746081
• SKU Name: crsh npj3484

Resources

• Product Spec Sheet
• Manufacturer Spec Sheet
