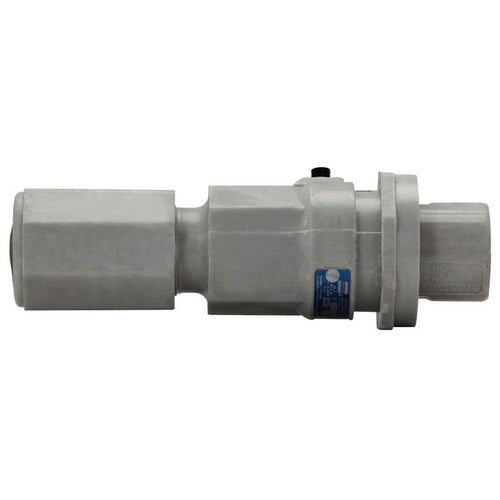

Crouse-Hinds NPJ6484 3W-4P Plug

Overview

Crouse-Hinds NPJ6484 3W-4P Plug

Product Specifications

• Catalog Description: EATON CROUSE-HINDS SERIES ARKTITE NPJ PLUG, 60A, THREE-WIRE, FOUR-POLE, 0.75-1.07", 50-400 HZ, STYLE 2, KRYDON FIBERGLASS-REINFORCED POLYESTER, 600 VAC/250 VDC
• Full Technical Description: Circuit Breaking, Conveyor, Motor, Pump, Welder Type; Natural Krydon Fiberglass Reinforced Polyester Material; 0.75 Inch min. Cable Outer Diameter; 1.07 Inch Max. Cable Outer Diameter; 3 Wire(S); UL 1682, CSA C22.2 Approval; 600 Volt AC at 50 to 400 Hertz, 250 Volt DC Voltage Rating; 60 Amp Current Rating; 4 Pole(S); Corrosion Resistant, Moisture Resistant, Dirt Tight, Dust Tight, Water Tight; 2, Extra Pole Grounding Style; ARKTITE[R] Brand; Hub Size 1 Inch; Enclosure Rating NEMA 4X; NPJ Model
• Manufacturer: EATON CROUSE-HINDS INDUSTRIAL
• Sub Category: Pin and Sleeve Plug
• Unspsc: 39121402
• UPC 12 Digit: 782274746159
• SKU Name: crsh npj6484

Resources

• Product Spec Sheet
• Manufacturer Spec Sheet
