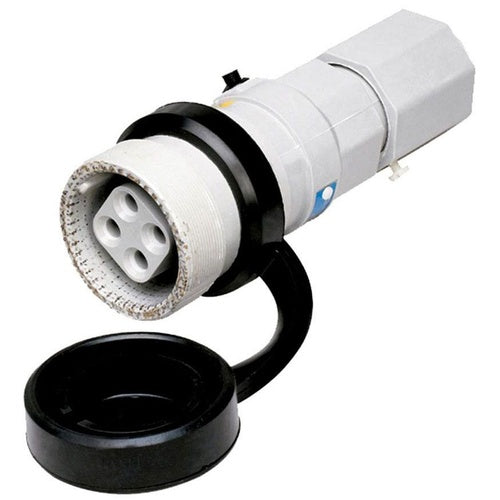

Crouse-Hinds NPR6465 3W-4P Receptacle

Overview

Crouse-Hinds NPR6465 3W-4P Receptacle

Product Specifications

• Catalog Description: EATON CROUSE-HINDS SERIES ARKTITE NPR CONNECTOR, 60A, THREE-WIRE, FOUR-POLE, 1.07-1.35", 50-400 HZ, STYLE 2, KRYDON FIBERGLASS-REINFORCED POLYESTER, 600 VAC/250 VDC
• Full Technical Description: Circuit Breaking, Conveyor, Motor, Pump, Welder Type; Natural Finished Krydon Fiberglass Reinforced Polyester Material; 1.07 Inch min. Cable Outer Diameter; 1.35 Inch Max. Cable Outer Diameter; 3 Wire(S); UL 1682, CSA C22.2 Approval; 600 VAC at 50 to 400 Hz, 250 VDC Voltage Rating; 60 Ampere Current Rating; 4 Pole(S); Corrosion Resistant, Dirttight, Dusttight, Moisture Resistant; 2, Extra Pole Grounding Style; ARKTITE[R] Brand; Enclosure Type NEMA 4X; Hub Size 1-1/2 Inch; NPR Model
• Manufacturer: EATON CROUSE-HINDS INDUSTRIAL
• Sub Category: Pin and Sleeve Connector
• Unspsc: 39121406
• UPC 12 Digit: 782274746135
• SKU Name: crsh npr6465

Resources

• Product Spec Sheet
• Manufacturer Spec Sheet
