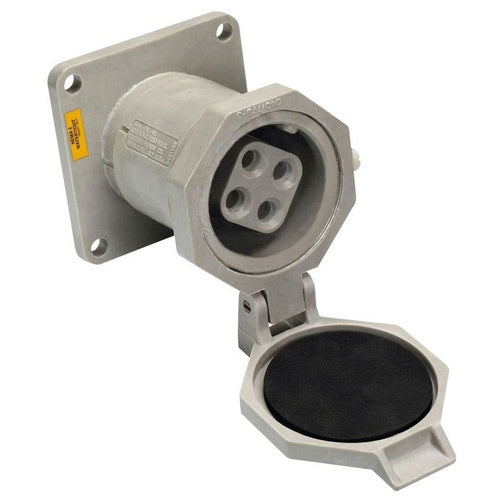

Crouse-Hinds NR1032 2W-3P Receptacle Housing

Overview

Crouse-Hinds NR1032 2W-3P Receptacle Housing

Product Specifications

• Catalog Description: EATON CROUSE-HINDS SERIES ARKTITE NR RECEPTACLE, 100A, TWO-WIRE, THREE-POLE, 50-400 HZ, STYLE 2, KRYDON FIBERGLASS-REINFORCED POLYESTER, SNAP-ON CAP/SPRING DOOR, 600 VAC/250 VDC
• Full Technical Description: Natural Krydon. Material; 2 Wire(S); Damp/Wet Location, Industrial Grade; UL 1682, CSA C22.2 Approval; 600 VAC at 50 to 400 Hz/250 VDC Voltage Rating; 100 Ampere Current Rating; 3 Pole(S); Corrosion Resistant, Dirt Tight, Dust Tight, Moisture Resistant, Water Tight; Snap on Cap/Spring Door; 2, Extra Pole Grounding Style; Arktite. Brand; Color Gray; Enclosure NEMA 4X; Suitable For Damp/Wet Location; NR Model
• Manufacturer: EATON CROUSE-HINDS INDUSTRIAL
• Sub Category: Pin And Sleeve Receptacle
• Unspsc: 39121406
• UPC 12 Digit: 782274255453
• SKU Name: crsh nr1032

Resources

• Product Spec Sheet
• Manufacturer Spec Sheet
