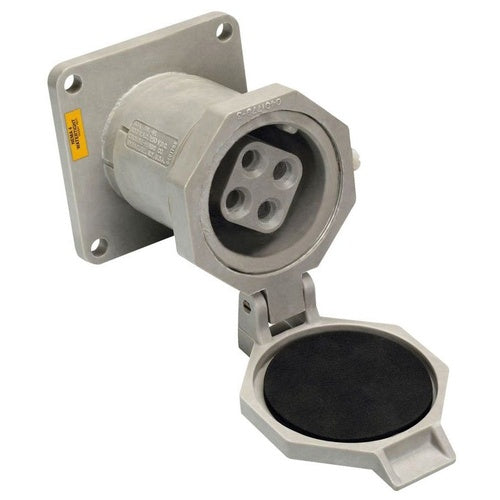

Crouse-Hinds NR342 3W-4P Receptacle

Overview

Crouse-Hinds NR342 3W-4P Receptacle

Product Specifications

• Catalog Description: EATON CROUSE-HINDS SERIES ARKTITE NR RECEPTACLE, 30A, THREE-WIRE, FOUR-POLE, 50-400 HZ, STYLE 2, KRYDON FIBERGLASS-REINFORCED POLYESTER, SNAP-ON CAP/SPRING DOOR, 600 VAC/250 VDC
• Full Technical Description: Polarized Type; Natural (Gray) Finished Krydon Fiberglass-Reinforced Polyester Material; 3 Wire(S); Industrial Grade; UL 1682, CSA C22.2 Approval; 600 VAC at 50 to 400 Hz, 250 VDC Voltage Rating; 30 Ampere Current Rating; 4 Pole(S); Corrosion Resistant, Watertight; Snap-on Cap/Spring Door; 2, Extra Pole Grounding Style; ARKTITE[R] Brand; Application Wet/Damp Location; Material Natural Finished Neoprene (Gaskets and O-Rings), Nylon (Cable Clamping Basket), Brass (Pressure Contacts), Molded Elastomer (Snap-on Cap), Copper-Free Aluminum (Back Box); Enclosure Type NEMA 4X; NR Model
• Manufacturer: EATON CROUSE-HINDS INDUSTRIAL
• Sub Category: Pin and Sleeve Receptacle
• Unspsc: 39121406
• UPC 12 Digit: 782274254425
• SKU Name: crsh nr342

Resources

• Product Spec Sheet
• Manufacturer Spec Sheet
