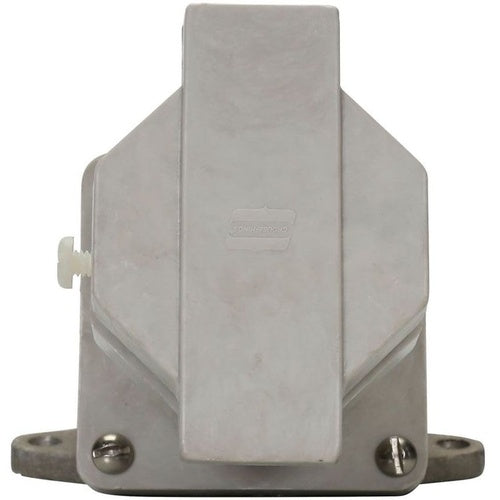

Crouse-Hinds NRE3423 3W-4P Receptacle Assembly

Overview

Crouse-Hinds NRE3423 3W-4P Receptacle Assembly

Product Specifications

• Catalog Description: EATON CROUSE-HINDS SERIES ARKTITE NRE RECEPTACLE ASSEMBLY, 30A, THREE-WIRE, FOUR-POLE, 50-400 HZ, STYLE 2, KRYDON FIBERGLASS-REINFORCED POLYESTER, SNAP-ON CAP/SPRING DOOR, 1", 600 VAC/250 VDC
• Full Technical Description: Natural Copper Free Aluminum Material; 3 Wire(S); 600 V at 50 to 400 Hz/250 VDC Voltage Rating; 30 Ampere Current Rating; 4 Pole(S); Corrosion Resistant, Dirt Tight, Dust Tight, Moisture Resistant, Water Tight; (1) 1 Inch Back Hub Type; Snap on Cap/Spring Door; 2, Extra Pole Grounding Style; Arktite. Brand; Application Cement Plant, Chemical Plant, Conveyor, Food Processing Plant, Motor, Pulp and Paper Plant, Pump, Sewage Plant, Welder; Color Gray; Enclosure NEMA 4X; NR Model
• Manufacturer: EATON CROUSE-HINDS INDUSTRIAL PRODUCTS
• Sub Category: Pin And Sleeve Receptacle Box Assembly
• Unspsc: 39121406
• UPC 12 Digit: 662276055001
• SKU Name: crsh nre3423

Resources

• Product Spec Sheet
• Manufacturer Spec Sheet
