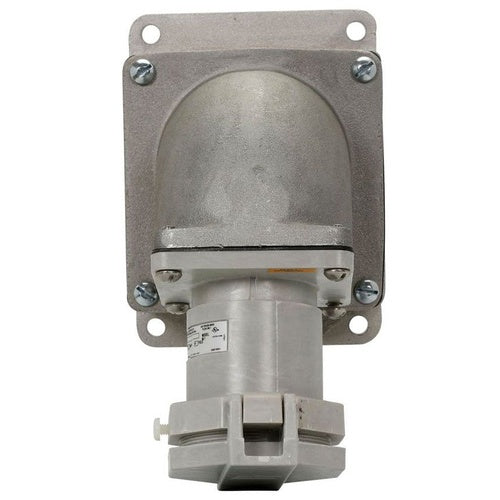

Crouse-Hinds NREA6424 Hd Receptacle Assembly/Housing

Overview

Crouse-Hinds NREA6424 Hd Receptacle Assembly/Housing

Product Specifications

• Catalog Description: EATON CROUSE-HINDS SERIES ARKTITE NREA RECEPTACLE ASSEMBLY, 60A, THREE-WIRE, FOUR-POLE, 50-400 HZ, STYLE 2, KRYDON FIBERGLASS-REINFORCED POLYESTER, SNAP-ON CAP/SPRING DOOR, 1-1/4", 600 VAC/250 VDC
• Full Technical Description: Krydon. Receptacle, Natural Copper Free Aluminum Back Box Material; 3 Wire(S); 600 VAC at 50 to 400 Hz, 250 VDC Voltage Rating; 60 Ampere Current Rating; 4 Pole(S); Corrosion Resistant, Dirt Tight, Dust Tight, Moisture Resistant; (1) 1 1/4 Inch Top Hub Type; Snap on Cap/Spring Door; 2, Extra Pole Grounding Style; Arktite. Brand; Application Cement Plant, Chemical Plant, Conveyor, Food Processing Plant, Motor, Pulp and Paper Plant, Pump, Sewage Plant, Welder; Receptacle Color Gray; Enclosure NEMA 4X; Water Tight When Used With Qe Threaded Cap; NR Model
• Manufacturer: EATON CROUSE-HINDS INDUSTRIAL
• Sub Category: Pin And Sleeve Receptacle Box Assembly
• Unspsc: 39121406
• UPC 12 Digit: 782274105086
• SKU Name: crsh nrea6424
