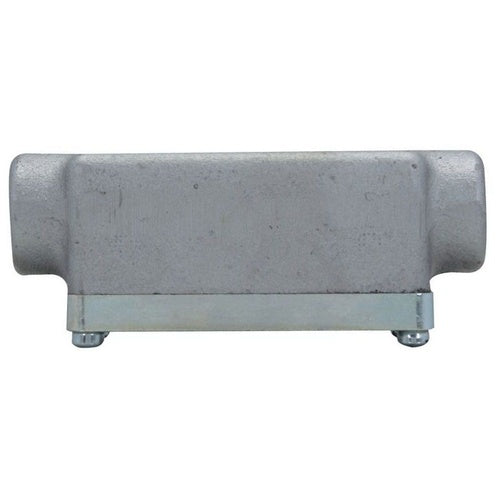

Crouse-Hinds OEC1 1/2" Oec-Type Conduit Body & Cover

Overview

Crouse-Hinds OEC1 1/2" Oec-Type Conduit Body & Cover

Product Specifications

• Catalog Description: EATON CROUSE-HINDS SERIES CONDULET OE CONDUIT OUTLET BODY WITH COVER, FERALOY IRON ALLOY, C SHAPE, 1/2"
• Full Technical Description: Feraloy Iron Alloy Material; 5.438 Inch Length X 1.813 Inch Width X 1.563 Inch Height Size; Electrogalvanized Aluminum Acrylic Painted Finish; 1/2 Inch Hub Size; C Configuration; 2 Hub(S); UL 1203, CSA C22.2 Approval; Class I Div 1 and 2 Group C D, Class II Div 1 Group E F G, Class II Div 2 Group F G, Class III, NEMA 7C/7D/9E/9F/9G Enclosure; Dust Ignitionproof; Straight Hub Location; CONDULET[R] Brand; Includes Cover; Application Hazardous Location; Used on Threaded Rigid Conduit; Applicable Standard Nec/Cec; OE Model
• Manufacturer: EATON CROUSE-HINDS INDUSTRIAL
• Sub Category: Explosionproof Conduit Body
• Unspsc: 39131708
• UPC 12 Digit: 782274551807
• SKU Name: crsh oec1

Resources

• Product Spec Sheet
• Manufacturer Spec Sheet
