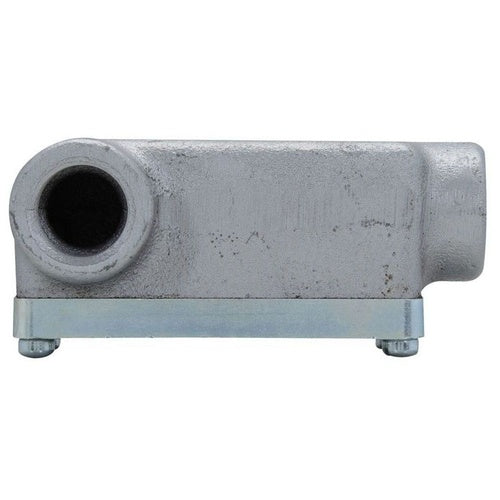

Crouse-Hinds OELL1 1/2" Oell-Type Conduit Body & Cover

Overview

Crouse-Hinds OELL1 1/2" Oell-Type Conduit Body & Cover

Product Specifications

• Catalog Description: EATON CROUSE-HINDS SERIES CONDULET OE CONDUIT OUTLET BODY WITH COVER, FERALOY IRON ALLOY, LL SHAPE, 1/2"
• Full Technical Description: Feraloy Iron Alloy Material; 1-9/16 Inch W Size; Electrogalvanized Acrylic Painted Finish; 1/2 Inch Hub Size; LL Configuration; 2 Hub(S); UL 886, CSA C22.2 Approval; Class I Div 1 and 2 Group C D, Class II Div 1 Group E F G, Class II Div 2 Group F G, Class III, NEMA 7C/7D/9E/9F/9G Enclosure; Explosionproof, Dust-Ignitionproof; 90 Deg Hub Location; Left Side Access Opening; CONDULET[R] Brand; Applicable Standard Nec/Cec; Application Hazardous Location; Includes Cover; Used on Threaded Rigid Conduit; OE Model
• Manufacturer: EATON CROUSE-HINDS INDUSTRIAL
• Sub Category: Explosionproof Conduit Body
• Unspsc: 39131708
• UPC 12 Digit: 782274552200
• SKU Name: crsh oell1

Resources

• Product Spec Sheet
• Manufacturer Spec Sheet
