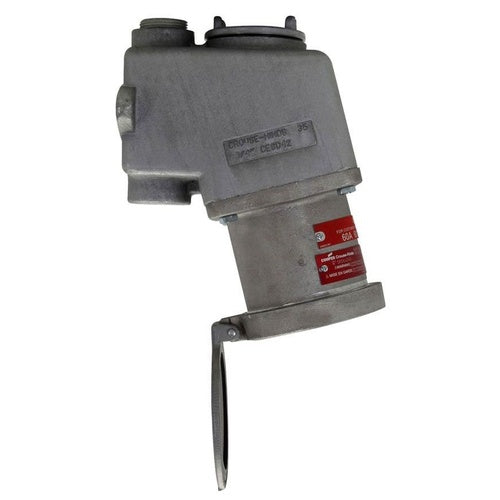

Crouse-Hinds SRD3484D 3W 4P 30Amp

Overview

Crouse-Hinds SRD3484D 3W 4P 30Amp

Product Specifications

• Full Technical Description: Interlocked Type; Electrogalvanized Aluminum Acrylic Painted Feraloy Iron Alloy Back Box, Natural Finished Copper Free Aluminum Cover Material; 3 Wire(S); 480 VAC at 60 to 400 Hz Voltage Rating; Class I Div 1 and 2 Group D, Class II Div 1 and 2 Group F G, Class III, NEMA 3/7D/9F/9G/12 Enclosure; 30 Ampere Current Rating; 4 Pole(S); Dust-Ignitionproof, Explosionproof, Raintight; 1-1/4 Inch Vertical Through Feed Hub Type; Threaded Cap; Extra Pole Grounding Style; Approval UL; Material Natural Finished High Impact Glass Filled Phenolic (Insulation), Silver Plated Brass (Contacts); Size 7-/4 Inch W X 18-1/2 Inch H; Application Wet Location; SRD Model
• Manufacturer: EATON CROUSE-HINDS INDUSTRIAL
• Sub Category: Pin and Sleeve Receptacle with Disconnect
• UPC 12 Digit: 782274083209
• SKU Name: crsh srd3484d

Resources

• Manufacturer Spec Sheet
