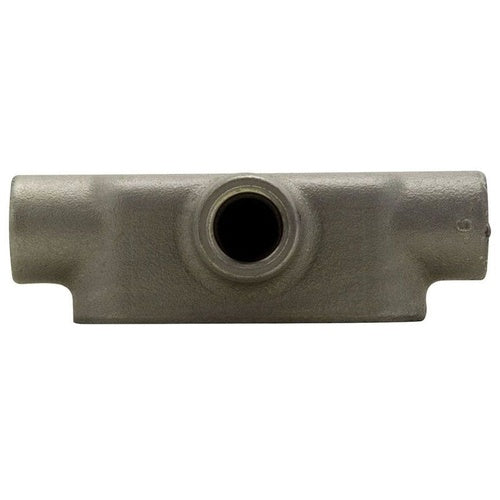

Crouse-Hinds T38 1" T-Type Conduit Body

Overview

Crouse-Hinds T38 1" T-Type Conduit Body

Product Specifications

• Catalog Description: EATON CROUSE-HINDS SERIES CONDULET FORM 8 CONDUIT OUTLET BODY, FERALOY IRON ALLOY, T SHAPE, 1"
• Full Technical Description: Electrogalvanized Aluminum Acrylic Painted Feraloy Iron Alloy (Body) Material; 7-5/16 Inch Length X 2-5/8 Inch Width X 2-1/4 Inch Height Size; Rigid Conduit Used on; 1 Inch Hub Size; Threaded Installation; T Configuration; 3 Hub(S); UL 514B/50E, CSA C22.2 Approval; Electrogalvanized Aluminum Acrylic Painted Feraloy Iron Alloy, Stainless Steel Cover Screw Cover Type; Tee Hub Location; Form 8 Form Type; Side Access Opening; CONDULET[R] Brand; Enclosure Rating NEMA 3R/12; Application Non-Hazardous Location; Applicable Standard Federal Specification WC-586D, Nec/Cec; T Model
• Manufacturer: EATON CROUSE-HINDS INDUSTRIAL
• Sub Category: Conduit Body
• Unspsc: 39131708
• UPC 12 Digit: 782274627205
• SKU Name: crsh t38

Resources

• Product Spec Sheet
• Manufacturer Spec Sheet
