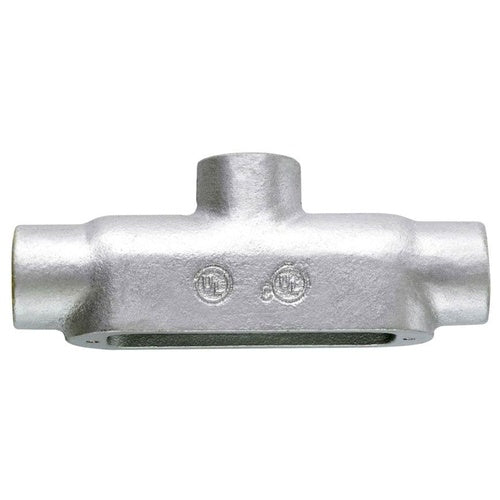

Crouse-Hinds TB200MCG 2" Malleable Tb-Type Conduit Body

Overview

Crouse-Hinds TB200MCG 2" Malleable Tb-Type Conduit Body

Product Specifications

• Catalog Description: EATON CROUSE-HINDS SERIES CONDULET FORM 5 CONDUIT OUTLET BODY, MALLEABLE IRON, TB SHAPE, SNAPPACK PRE-ASSEMBLED BODY AND INTEGRAL GASKET COVER, 2"
• Full Technical Description: Electrogalvanized Aluminum Acrylic Painted Malleable Iron (Body), Natural Finished Neoprene (Gasket), Natural Finished Stainless Steel (Screw) Material; 11.5 Inch L X 3.12 Inch W X 4.42 Inch H Size; Rigid Conduit Used on; 2 Inch Hub Size; Threaded, Set Screw Installation; TB Configuration; 3 Hub(S); UL 514B, CUL, CSA C22.2 Approval; Electrogalvanized Sheet Steel, Screw-on Cover Type; Tee Back Hub Location; Form 5 Form Type; Tee Back Access Opening; CONDULET[R], SNAPPACK[TM] Brand; Includes Cover, Gasket, Screw; TB Model
• Manufacturer: EATON CROUSE-HINDS COMMERCIAL PRODUCTS
• Sub Category: Conduit Body
• Unspsc: 39131708
• UPC 12 Digit: 662277004220
• SKU Name: crsh tb200m cg

Resources

• Product Spec Sheet
• Manufacturer Spec Sheet
