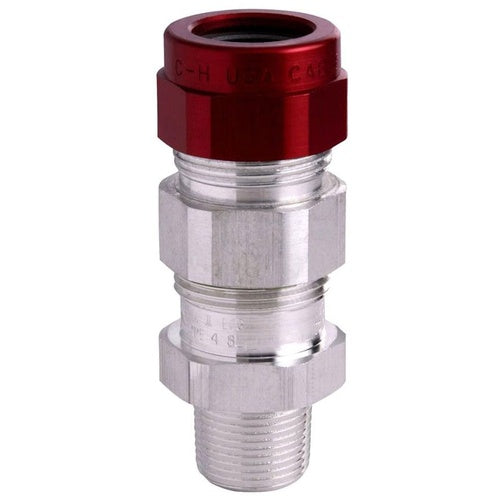

Crouse-Hinds TMCX165-BR 1/2" Brass Cable Fitting

Overview

Crouse-Hinds TMCX165-BR 1/2" Brass Cable Fitting

Product Specifications

• Catalog Description: EATON CROUSE-HINDS SERIES TMCX CABLE GLAND,METAL-CLADCORRUGATED,TECK ARMOURED AND TRAY CABLE,ARMOURED BARRIER AND NON-ARMOURED BARRIER, BRASS, OUTER SHEATH:0.49-0.78", 1/2" NPT,ARMOR RANGE:0.44-0.65"
• Full Technical Description: Straight, Threaded Male Type; Brass Material; 3.375 Inch; Metal Clad, Non-Armored, Tray Cable Cable Type; UL, CSA Approval; Class I Div 1 Group A B C D, Class II, Class III, NEMA 4, IP56 Enclosure; 1/2 Inch Thread Size; -25 to 60 Deg C Operating Temperature; Explosionproof, Watertight; 0.49 to 0.781 Inch Cable Outer Diameter; Application Wet Location; Thread Length 0.75 Inch; Cable Range Over Armored 0.44 to 0.65 Inch; Nut Size 1.25 Inch (Width Across Flat), 1.375 Inch (Width Across Corner); Seal Material Neoprene; TMCX Model
• Manufacturer: EATON CROUSE-HINDS INDUSTRIAL
• Sub Category: Cable Gland
• Unspsc: 39121311
• UPC 12 Digit: 782274037271
• SKU Name: crsh tmcx165br

Resources

• Manufacturer Spec Sheet
