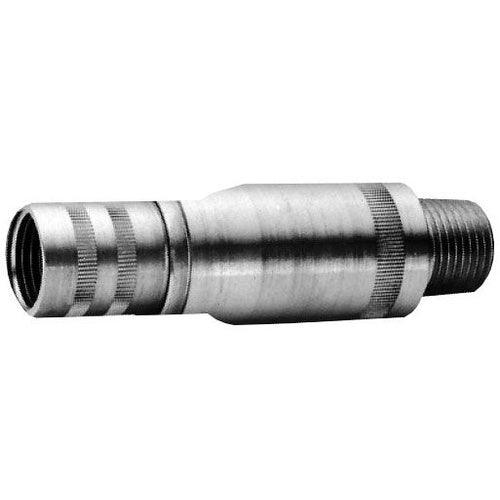

Crouse-Hinds UNYL27 3/4" Male Union

Overview

Crouse-Hinds UNYL27 3/4" Male Union

Product Specifications

• Catalog Description: EATON CROUSE-HINDS SERIES UNY EXPANSION UNION, RIGID/IMC, MALE, STEEL, 3/4", LONG
• Full Technical Description: Long Type; Electrogalvanized Chromated Steel Body/Sleeve, Natural Finished Beryllium Copper Ground Spring Material; 4-1/2 Inch Max. Length; Male to Female Connection Type; UL 886, CSA C22.2 Approval; 1-7/16 Inch Diameter; Class I Div 1 and 2 Group C D, Class II Div 1 Group E F G, Class II Div 2 Group F G, Class III Enclosure; 3/4 Inch Trade Size; Applicable Standard Nec/Cec; Application Hazardous Location; Constructional Feature Dustproof, Explosionproof, Ignitionproof; Used on Rigid Conduit; UNYL Model
• Manufacturer: EATON CROUSE-HINDS INDUSTRIAL
• Sub Category: Explosionproof Conduit Expansion Union
• Unspsc: 39131707
• UPC 12 Digit: 782274129082
• SKU Name: crsh unyl27

Resources

• Product Spec Sheet
• Manufacturer Spec Sheet
