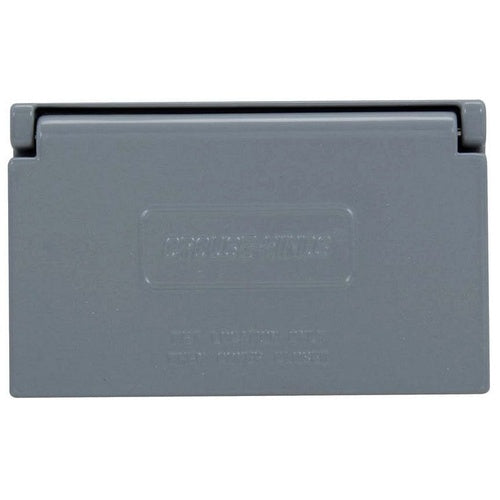

Crouse-Hinds WLGF-FS Weatherproof Receptacle Cover

Overview

Crouse-Hinds WLGF-FS Weatherproof Receptacle Cover

Product Specifications

• Catalog Description: EATON CROUSE-HINDS SERIES WLGF WET LOCATION COVER, COPPER-FREE ALUMINUM, HORIZONTAL, GASKET, SPRING DOOR COVER, FOR GFCI RECEPTACLES, USED WITH FS AND FD DEVICE BOXES
• Full Technical Description: Non-Locking Spring Door Type; Lacquer Die-Cast Copper-Free Aluminum Material; 4-9/16 Inch Length X 2-13/16 Inch Width Size; 1 Gang(S); Box, Device Mounting; GFCI Receptacle Device Type; Horizontal Mounting Position; Single Lid Lid Type; Voltage Rating 125/225 Volt, Current Rating 15 or 20 Amp; Configuration 2-Pole, 3-Wire; Cover Hinge Spring Material Stainless Steel; Cover Screw Material Corrosion Resistant Metal; Gasket Material Neoprene; Used on Fs/Fd Device Box; Application Wet Location; WLGF Model
• Manufacturer: EATON CROUSE-HINDS INDUSTRIAL
• Sub Category: Cast Device Box Cover with Lid
• Unspsc: 39121304
• UPC 12 Digit: 782274718026
• SKU Name: crsh wlgffs

Resources

• Product Spec Sheet
• Manufacturer Spec Sheet
