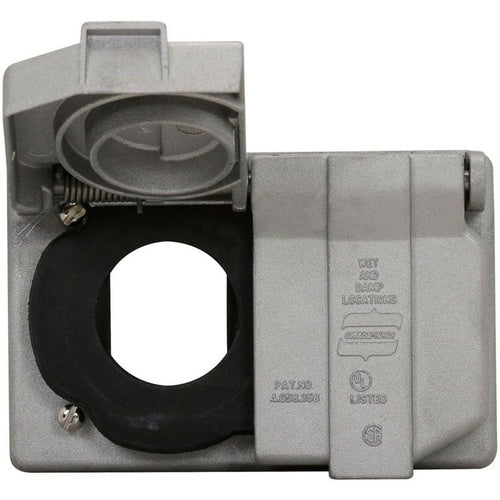

Crouse-Hinds WLRD-5-20 Alum Duplex Receptacle Cover

Overview

Crouse-Hinds WLRD-5-20 Alum Duplex Receptacle Cover

Product Specifications

• Catalog Description: EATON CROUSE-HINDS SERIES WLRD WET LOCATION COVER WITH RECEPTACLE ASSEMBLY, 20A, TWO-POLE, THREE-WIRE, COPPER-FREE ALUMINUM, HORIZONTAL, 5-20R, 1-3/8", FOR NON-LOCKING BLADE PLUGS, 125 VAC
• Full Technical Description: Rectangular Type; Die-Cast Aluminum Lacquer Copper Free Aluminum Material; 4.44 Inch W X 2.91 Inch H Size; 1 Gang(S); UL 514A Approval; Screw Mounting; (1) 125 V 20 Ampere Double Pole Three Wire Ground Duplex Receptacle Device Type; Applicable Standard ANSI, NEC, NEMA Wd-1, OSHA; Constructional Feature Corrosion Resistant; Used on Non-Locking Blade Plug; Application Wet Location; WLRD Model
• Manufacturer: EATON CROUSE-HINDS INDUSTRIAL
• Sub Category: Cast Device Box Cover with Device
• Unspsc: 39121304
• UPC 12 Digit: 782274128085
• SKU Name: crsh wlrd520

Resources

• Product Spec Sheet
• Manufacturer Spec Sheet
