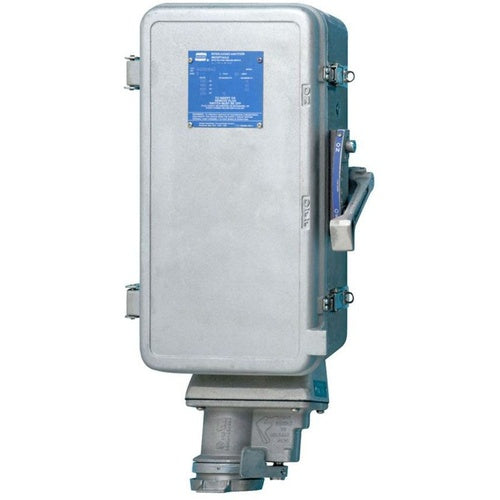

Crouse-Hinds WSR63541 600V-30A Switch

Overview

Crouse-Hinds WSR63541 600V-30A Switch

Product Specifications

• Catalog Description: EATON CROUSE-HINDS SERIES ARKTITE WSR INTERLOCKED RECEPTACLE WITH ENCLOSED DISCONNECT SWITCH, 60A, 3-WIRE, 3-POLE, BRASS CONTACTS, SOLID DOOR, NON-FUSED, STYLE 1, 15 HP/30 HP/50 HP, COPPER-FREE ALUM, SPRING DOOR, 1-1/4", 240-600 VAC
• Full Technical Description: Mechanically Interlocked Type; Natural Copper Free Aluminum Enclosure Material; 3 Wire(S); 240/600 VAC, 250 VDC Voltage Rating; NEMA 3R/4/12 Enclosure; 60 Ampere Current Rating; 3 Pole(S); Corrosion Resistant, Rain Tight, Water Tight; 1-1/4 Inch Hub Type; Non Fusible Fuse Provision; Hinged Spring Door, Gasketed; 1, Shell Grounding Style; Crouse-Hinds. Brand; Approval UL 98; WSR Model
• Manufacturer: EATON CROUSE-HINDS INDUSTRIAL
• Sub Category: Pin And Sleeve Receptacle With Disconnect
• Unspsc: 39121406
• UPC 12 Digit: 782274019505
• SKU Name: crsh wsr63541

Resources

• Product Spec Sheet
• Manufacturer Spec Sheet
