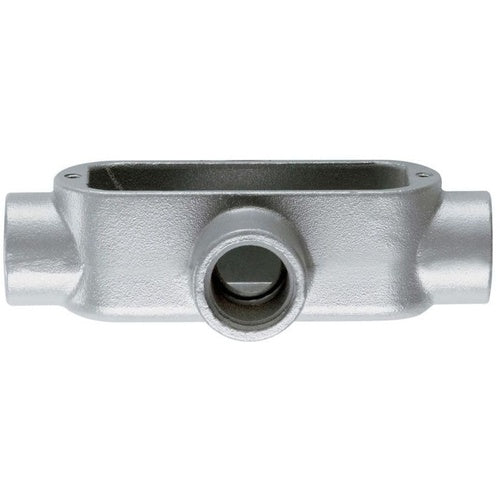

Crouse-Hinds X100MCG 1" Malleable X-Type Conduit Body

Overview

Crouse-Hinds X100MCG 1" Malleable X-Type Conduit Body

Product Specifications

• Catalog Description: EATON CROUSE-HINDS SERIES CONDULET FORM 5 CONDUIT OUTLET BODY, MALLEABLE IRON, X SHAPE, SNAPPACK PRE-ASSEMBLED BODY AND INTEGRAL GASKET COVER, 1"
• Full Technical Description: Electrogalvanized Aluminum Acrylic Painted Malleable Iron (Body), Natural Finished Neoprene (Gasket), Natural Finished Stainless Steel (Screw) Material; 7.1 Inch L X 2.25 Inch W X 3.56 Inch H Size; Rigid Conduit Used on; 1 Inch Hub Size; Set Screw, Threaded Installation; X Configuration; 4 Hub(S); UL 514B, CUL, CSA C22.2 Approval; Electrogalvanized Sheet Steel, Screw-on Cover Type; Cross Hub Location; Form 5 Form Type; Cross Side Access Opening; CONDULET[R], SNAPPACK[TM] Brand; Includes Cover, Gasket, Screw
• Manufacturer: EATON CROUSE-HINDS COMMERCIAL PRODUCTS
• Sub Category: Conduit Body
• Unspsc: 39131708
• UPC 12 Digit: 662277004138
• SKU Name: crsh x100m cg

Resources

• Product Spec Sheet
• Manufacturer Spec Sheet
