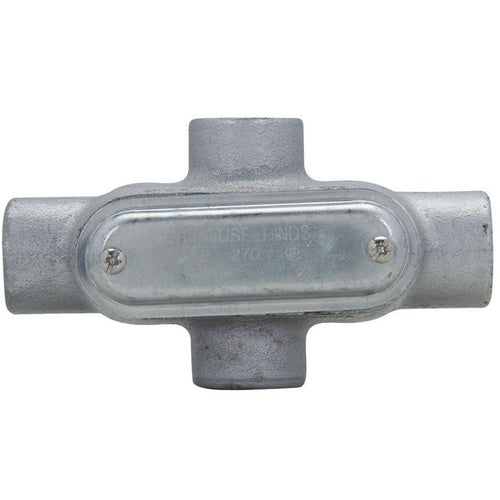

Crouse-Hinds X37-CG Conduit Outlet Body

Overview

Crouse-Hinds X37-CG Conduit Outlet Body

Product Specifications

• Catalog Description: EATON CROUSE-HINDS SERIES CONDULET FORM 7 SNAPPACK CONDUIT OUTLET BODY, GASKET AND COVER, FERALOY IRON ALLOY, X SHAPE, 1"
• Full Technical Description: Electrogalvanized Aluminum Acrylic Painted Feraloy Iron Alloy (Body), Solid Neoprene (Gasket), Stainless Steel (Screw) Material; 7-1/4 Inch L X 2-1/4 Inch W X 4 Inch H Size; Rigid Conduit Used on; 1 Inch Hub Size; Threaded Installation; X Configuration; 4 Hub(S); UL 514B, CSA 22.2 Approval; Snaptight, Electrogalvanized Aluminum Acrylic Painted Feraloy Iron Alloy Cover Type; Cross Hub Location; Form 7 Form Type; Side Access Opening; CONDULET[R], SNAPPACK[TM] Brand; Applicable Standard Federal Specification WC-586D; Includes Cover, Gasket, Screw
• Manufacturer: EATON CROUSE-HINDS INDUSTRIAL
• Sub Category: Conduit Body
• Unspsc: 39131708
• UPC 12 Digit: 782274141220
• SKU Name: crsh x37cg
