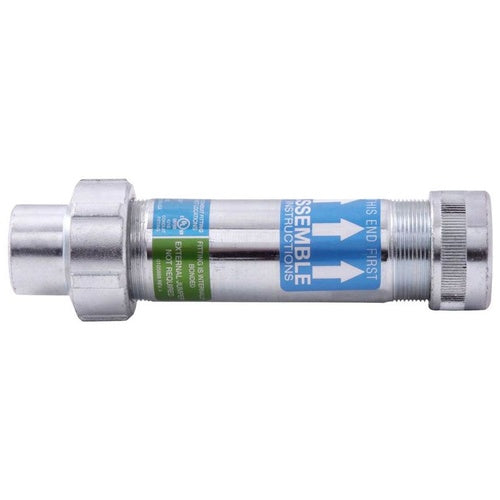

Crouse-Hinds XJG38-SA 1" Expansion Joint

Overview

Crouse-Hinds XJG38-SA 1" Expansion Joint

Product Specifications

• Catalog Description: EATON CROUSE-HINDS SERIES XJG EXPANSION COUPLING, RIGID/IMC, COPPER-FREE ALUMINUM, 8" MAXIMUM CONDUIT MOVEMENT, 1" TRADE SIZE
• Full Technical Description: Approval UL 514B, CSA C22.2; Diameter 2.43 Inch; Ground Type Internally Grounded Tinned Copper Braid; Length 11.25 Inch; Material Copper Free Aluminum Body, Bushing, Gland Nut, Reducer, Washer; Electrogalvanized Phosphor Bronze Ground Spring, Electrogalvanized Malleable Iron U Bolt, Non-ST. Packing, Vellum Gasket; Maximum Movement 8 Inch; Trade Size 1 Inch; Used on Rigid Metal Conduit, IMC; Crouse-Hinds. Brand; XJG Model; Strap Length 30 Inch
• Manufacturer: EATON CROUSE-HINDS INDUSTRIAL
• Sub Category: Rigid/Emt Conduit Expansion/Deflection Joint
• Unspsc: 39121311
• UPC 12 Digit: 782274915814
• SKU Name: crsh xjg38sa

Resources

• Manufacturer Spec Sheet
