Crouse-Hinds XJGD84 Expand/Deflection Joint

Overview

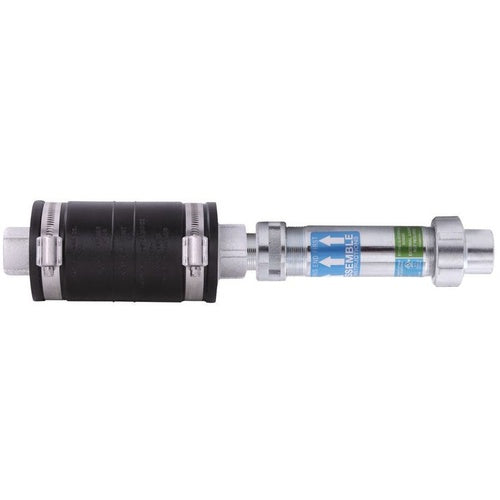

Crouse-Hinds XJGD84 Expand/Deflection Joint

Product Specifications

• Catalog Description: EATON CROUSE-HINDS SERIES XJGD EXPANSION/DEFLECTION COUPLING, STEEL, 3"
• Full Technical Description: Thermal Expansion/Contraction Type; Electrogalvanized Feraloy Iron Alloy Body/Washer/Bushing/Hub/Gland Nut, Electrogalvanized Phosphor Bronze Ground Spring, Molded Black Neoprene Outer Jacket, Stainless Steel Jacket Clamp, Molded Brown Plastic Inner Sleeve, PTFE Packing, Vellum Gasket Material; 21-5/8 Inch; Imc/Rigid Metal Conduit Used on; 3/4 Inch, 30 Deg Max. Movement; UL 514B, CSA C22.2 Approval; 7-5/8 Inch Diameter; Internally Grounded Tinned Copper Braid; 3 Inch Trade Size; Weatherproof; Application Wet Location; XJGD Model
• Manufacturer: EATON CROUSE-HINDS INDUSTRIAL
• Sub Category: Rigid/EMT Expansion/Deflection Joint
• Unspsc: 39131707
• UPC 12 Digit: 782274130828
• SKU Name: crsh xjgd84

Resources

• Manufacturer Spec Sheet
