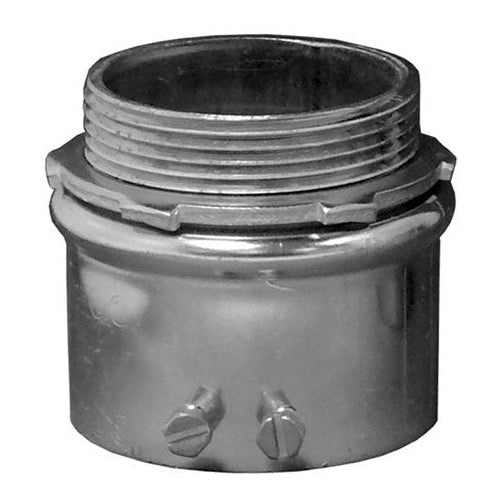

Appleton 4125S 1-1/4" Emt Set-Screw Connector

Overview

Appleton 4125S 1-1/4" Emt Set-Screw Connector

Product Specifications

• UPC: 68785584616
• Thread Length: 0.56 Inch
• Material: Zinc Plated Steel
• Constructional Feature: Concretetight
• Approval: UL 514B, CUL, CSA C22.2
• Used On: EMT Conduit
• Additional Information: Applicable Standard NEMA FB-1
• Catalog Number: 4125S
• Brand Name: ETP[R]
• Model: Series 4000S
• Type: Set Screw
• Throat Type: Non-Insulated
• Trade Size: 1-1/4 Inch
• Diameter: 1.69 Inch
• Length: 1.75 Inch
• Catalog Description: FEATURES:1 3/4IN DIA X 1 11/16IN LENGTH, 9/16 IN THREAD LENGTH, CONCRETETIGHT, STANDARD:UL 514B, CSA C22.2, NEMA FB-1, SIZE:1.25IN, CONNECTION:MALE NPS THREAD, MATERIAL:STEEL, FINISH:ZINC ELECTRO PLATED
• Category: Steel Uninsulated Straight Set Screw Emt Connectors
• Full Technical Description: Set Screw Type; Zinc Plated Steel Material; 1.75 Inch; EMT Conduit Used on; 0.56 Inch Thread Length; UL 514B, CUL, CSA C22.2 Approval; 1.69 Inch Diameter; 1-1/4 Inch Trade Size; Concretetight; Non-Insulated Throat Type; Etp Brand; Applicable Standard NEMA FB-1; SERIES 4000S Model
• Manufacturer: EGS Electrical Group
• Manufacturer Brand: EGS Electrical Group
• Sub Category: Rigid/EMT Conduit Connector
• Unspsc: 39121434
• UPC 12 Digit: 687855846160
• SKU Name: egs 4125s
