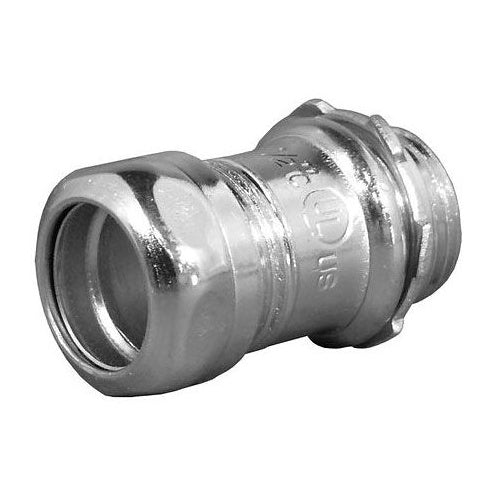

Appleton 7100S 1" Emt Compression Connector

Overview

Appleton 7100S 1" Emt Compression Connector

Product Specifications

• UPC: 68785587319
• Thread Length: 0.44 Inch
• Material: Zinc Plated Steel (Body/Nut)
• Constructional Feature: Concretetight
• Approval: UL 514B, CUL, CSA C22.2
• Used On: EMT Conduit
• Additional Information: Applicable Standard NEMA FB-1
• Catalog Number: 7100S
• Brand Name: ETP[R]
• Model: Series 7000S
• Type: Compression
• Throat Type: Non-Insulated
• Trade Size: 1 Inch
• Diameter: 1.56 Inch
• Length: 1.25 Inch
• Catalog Description: FEATURES:1 1/4IN DIA X 1 9/16IN LENGTH, 9/16 IN THREAD LENGTH, CONCRETETIGHT, STANDARD:UL 514B, CSA C22.2, NEMA FB-1, SIZE:1IN, CONNECTION:MALE NPS THREAD, MATERIAL:STEEL, FINISH:ZINC ELECTRO PLATED
• Category: Steel Uninsulated Straight Compression Emt Connectors
• Full Technical Description: Compression Type; Zinc Plated Steel (Body/Nut) Material; 1.25 Inch; EMT Conduit Used on; 0.44 Inch Thread Length; UL 514B, CUL, CSA C22.2 Approval; 1.56 Inch Diameter; 1 Inch Trade Size; Concretetight; Non-Insulated Throat Type; Etp Brand; Applicable Standard NEMA FB-1; SERIES 7000S Model
• Manufacturer: EGS Electrical Group
• Manufacturer Brand: EGS Electrical Group
• Sub Category: Rigid/EMT Conduit Connector
• Unspsc: 39121434
• UPC 12 Digit: 687855873197
• SKU Name: egs 7100s

Resources

• Manufacturer Spec Sheet
