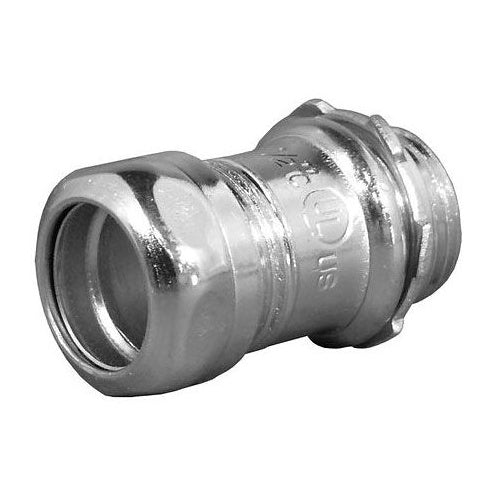

Appleton 7150ST 1-1/2" Emt Compression Connector Insulated Steel

Overview

Appleton 7150ST 1-1/2" Emt Compression Connector Insulated Steel

Product Specifications

• UPC: 68785587344
• Thread Length: 0.56 Inch
• Material: Zinc Plated Steel
• Constructional Feature: Concretetight
• Approval: UL 514B, CSA C22.2
• Used On: EMT Conduit
• Additional Information: APPLICABLE STANDARD NEMA FB-1
• Catalog Number: 7150ST
• Brand Name: ETP[R]
• Model: 7000S
• Type: Compression
• Throat Type: Insulated
• Trade Size: 1-1/2 Inch
• Diameter: 2.19 Inch
• Length: 2 Inch
• Catalog Description: FEATURES:2IN DIA X 2 3/16IN LENGTH, 9/16 IN THREAD LENGTH, CONCRETETIGHT, STANDARD:UL 514B, CSA C22.2, NEMA FB-1, SIZE:1.5IN, CONNECTION:MALE NPS THREAD, MATERIAL:STEEL, FINISH:ZINC ELECTRO PLATED,INSULATION:INSULATED THROAT, TEMPERATURE RATING:90CE
• Category: Steel Insulated Straight Compression Emt Connectors
• Full Technical Description: Compression Type; Zinc Plated Steel Material; 2 Inch; EMT Conduit Used on; 0.56 Inch Thread Length; UL 514B, CSA C22.2 Approval; 2.19 Inch Diameter; 1-1/2 Inch Trade Size; Concretetight; Insulated Throat Type; ETP[R] Brand; Applicable Standard NEMA FB-1; 7000S Model
• Manufacturer: EGS Electrical Group
• Manufacturer Brand: EGS Electrical Group
• Sub Category: Rigid/EMT Conduit Connector
• Unspsc: 39121434
• UPC 12 Digit: 687855873449
• SKU Name: egs 7150st
