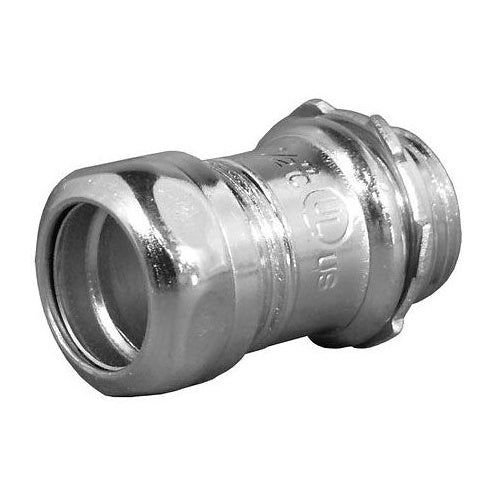

Appleton 7400S 4" Emt Compression Connector

Overview

Appleton 7400S 4" Emt Compression Connector

Product Specifications

• UPC: 68785587500
• Thread Length: 1 Inch
• Material: Zinc Plated Steel (Body/Nut)
• Constructional Feature: Concretetight
• Approval: UL 514B, CUL, CSA C22.2
• Used On: EMT Conduit
• Additional Information: Applicable Standard NEMA FB-1
• Catalog Number: 7400S
• Brand Name: ETP[R]
• Model: Series 7000S
• Type: Compression
• Throat Type: Non-Insulated
• Trade Size: 4 Inch
• Diameter: 5.06 Inch
• Length: 3.19 Inch
• Catalog Description: FEATURES:3 3/16IN DIA X 5 1/16IN LENGTH, 1 IN THREAD LENGTH, CONCRETETIGHT, STANDARD:UL 514B, CSA C22.2, NEMA FB-1, SIZE:4IN, CONNECTION:MALE NPS THREAD, MATERIAL:STEEL, FINISH:ZINC ELECTRO PLATED
• Category: Steel Uninsulated Straight Compression Emt Connectors
• Full Technical Description: Compression Type; Zinc Plated Steel (Body/Nut) Material; 3.19 Inch; EMT Conduit Used on; 1 Inch Thread Length; UL 514B, CUL, CSA C22.2 Approval; 5.06 Inch Diameter; 4 Inch Trade Size; Concretetight; Non-Insulated Throat Type; Etp Brand; Applicable Standard NEMA FB-1; SERIES 7000S Model
• Manufacturer: EGS Electrical Group
• Manufacturer Brand: EGS Electrical Group
• Sub Category: Rigid/EMT Conduit Connector
• Unspsc: 39121434
• UPC 12 Digit: 687855875009
• SKU Name: egs 7400s
