ILSCO ELT-2 2/0Str Crimp Ground Connector

Overview

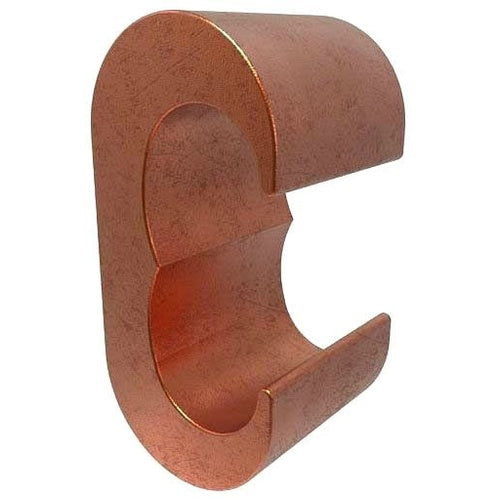

Ilsco ELT-2 2/0Str Crimp Ground Connector

Product Specifications

• UPC: 78366925732
• Die Index: O
• Body Material: Copper Alloy
• Approval: UL 467, UL 667P, CSA
• Additional Information: Width 0.75 Inch
• Catalog Number: ELT-2
• Model: ELT
• Shape: E
• Conductor Material: Copper
• Minimum Run Conductor Size: 1 AWG Stranded
• Maximum Run Conductor Size: 2/0 AWG Stranded
• Minimum Tap Conductor Size: 1 AWG Stranded
• Maximum Tap Conductor Size: 2/0 AWG Stranded
• Catalog Description: PERMAGROUND COPPER GROUNDING E CRIMP, MAIN CONDUCTOR RANGE 2/0-1, MAIN REBAR SIZE #3, TAP RANGE 2/0-1, TAP REBAR SIZE #3, UL, CSA
• Category: Large Terminals & Connectors
• Full Technical Description: 1 AWG Stranded min. Run Conductor Size; 2/0 AWG Stranded Max. Run Conductor Size; 1 AWG Stranded min. Tap Conductor Size; 2/0 AWG Stranded Max. Tap Conductor Size; E Shape; Copper Conductor Material; UL 467, UL 667P, CSA Approval; Copper Alloy Body Material; O Die Index; Width 0.75 Inch; ELT Model
• Manufacturer: ILSCO Corp.
• Manufacturer Brand: ILSCO Corp.
• Proposition 65 Warning (Ca): This product is in compliance with Prop65; it is not known to contain any chemicals associated with this regulation
• Sub Category: Compression Cable Tap
• Unspsc: 39121448
• UPC 12 Digit: 783669257328
• SKU Name: elt2 ilsco
