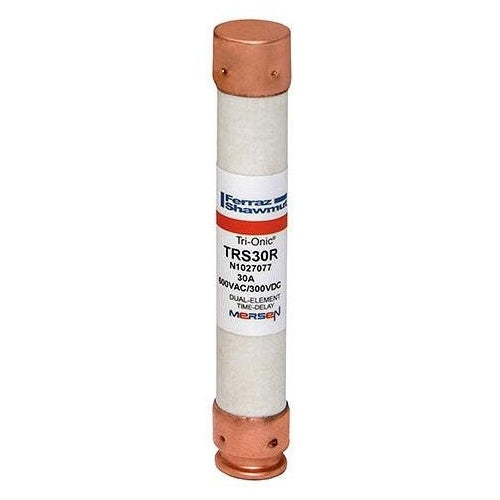

Mersen-Ferraz TRS30R 30A 600V Rk5 Time Delay Fuse

Overview

Mersen-Ferraz TRS30R 30A 600V Rk5 Time Delay Fuse

Product Specifications

• UPC: 78200174886
• Length: 5 Inch
• Approval: UL, CSA
• Additional Information: Mounting Type Clip; Speed Time Delay; Terminal Material Copper; Body/Insulating Material PolyTube; Frequency Rating 50/60 Hertz; Application Motor Circuit, Main, Feeder, Branch Circuit, Transformer, Service Entrance Equipment, General Purpose Equipment
• Catalog Number: TRS30R
• Brand Name: Tri-Onic[R]
• Type: Motor Circuit Protection, Class RK5
• Voltage Rating: 600 Volt AC/300 Volt DC
• Current Rating: 30 Amp
• Interrupting Rating: 200 Kiloamp (AC), 100/20 Kiloamp (DC)
• Terminal Type: Ferrule
• Diameter: 0.81 Inch
• Catalog Description: FUSE TRS-R - CLASS RK5 - TIME-DELAY 600VAC 300VDC 30A FERRULE TRI-ONIC
• Category: Current Limiting Fuses
• Full Technical Description: Motor Circuit Protection, Class RK5 Type; 5 Inch; UL, CSA Approval; 600 Volt Ac/300 Volt DC Voltage Rating; 0.81 Inch Diameter; 200 Kiloamp (AC), 100/20 Kiloamp (DC) Interrupting Rating; 30 Amp Current Rating; Ferrule Terminal Type; TRI-ONIC[R] Brand; Mounting Type Clip; Speed Time Delay; Terminal Material Copper; Body/Insulating Material Polytube; Frequency Rating 50/60 Hertz; Application Motor Circuit, Main, Feeder, Branch Circuit, Transformer, Service Entrance Equipment, General Purpose Equipment
• Manufacturer: Mersen - Ferraz Shawmut
• Manufacturer Brand: Mersen - Ferraz Shawmut, Inc.
• Sub Category: Motor Protection Fuse
• Unspsc: 39121604
• UPC 12 Digit: 782001748869
• SKU Name: frz trs30r
