Burndy GCL30 4 Sol-300 KCMIL Ground ClAMP

Overview

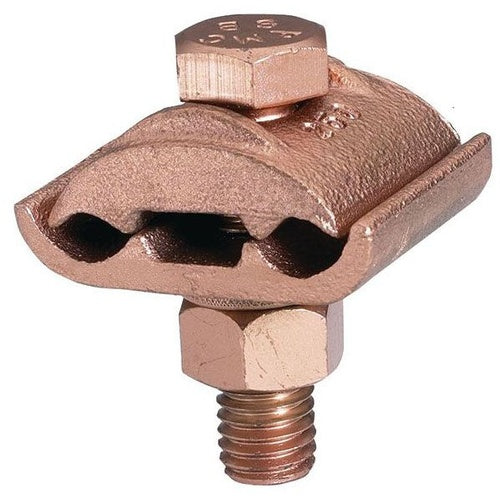

Burndy GCL30 4 Sol-300 KCMIL Ground Clamp

Product Specifications

• UPC: 78181007947
• Used On: (2) Parallel Cable to Bar, Direct Burial
• Additional Information: RoHS Compatible; Width 1.5 Inch; Installation Torque 480 Lb-Inch
• Catalog Number: GCL30
• Model: GC
• Conductor Size: 4 to 4/0 AWG Solid (Copper), 4 AWG Stranded to 300 KCMIL (Copper)
• Bolt Size: 1/2 Inch
• Bar Thickness: 1/4 Inch
• Height: 2 Inch
• Material: Cast Copper Alloy Body, Durium Bolt/Nut/Lockwasher
• Approval: UL 467, CSA
• Catalog Description: CAST COPPER ALLOY GROUND CLAMP, 4 STR. - 300, CABLE TO BAR.
• Category: Large Terminals & Connectors
• Full Technical Description: Cast Copper Alloy Body, Durium Bolt/Nut/Lockwasher Material; 2 Inch; (2) Parallel Cable to Bar, Direct Burial Used on; UL 467, CSA Approval; 4 to 4/0 AWG Solid (Copper), 4 AWG Stranded to 300 kcmil (Copper) Conductor Size; 1/2 Inch Bolt Size; 1/4 Inch Bar Thickness; RoHS Compatible; Width 1.5 Inch; Installation Torque 480 lb-Inch; GC Model
• Manufacturer: Burndy Products
• Manufacturer Brand: Burndy Products
• Proposition 65 Warning (Ca): Warning: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
• Sub Category: Bar To Flat Surface Clamp
• Unspsc: 39121408
• UPC 12 Digit: 781810079478
• SKU Name: gcl30 burndy

Resources

• Technical Drawing
• Technical Line Drawing
• Manufacturer Spec Sheet
