Burndy GRL4 Ground Rod ClAMPs 1/2"

Overview

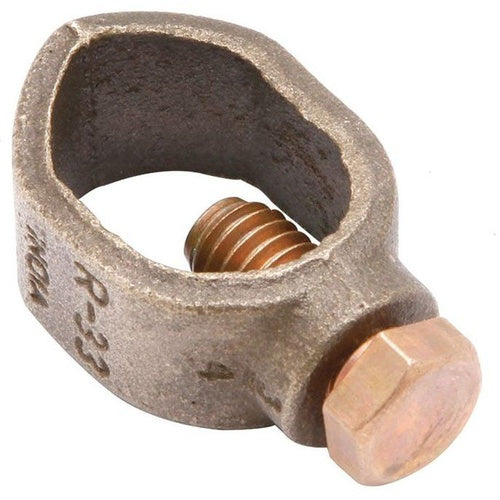

Burndy GRL4 Ground Rod Clamps 1/2"

Product Specifications

• UPC: 78181005181
• Used On: Grounding Wire to Rod, Direct Burial
• Additional Information: RoHS Compliant
• Catalog Number: GRL4
• Model: Type GRL
• Conductor Size: 10 to 2 AWG Stranded (Copper)
• Rod Size: 1/2 Inch
• Size: 0.83 Inch W x 1.2 Inch H
• Installation: Hex Head Screw
• Material: Copper Alloy Body, Silicon Bronze Bolt
• Approval: UL 467, CSA
• Catalog Description: COPPER ALLOY LIGHT DUTY ECONOMICAL GROUND ROD CLAMP, 2-10 AWG, 1/2-ROD SIZE.
• Category: Large Terminals & Connectors
• Full Technical Description: Copper Alloy Body, Silicon Bronze Bolt Material; 0.83 Inch W X 1.2 Inch H Size; Grounding Wire to Rod, Direct Burial Used on; Hex Head Screw Installation; UL 467, CSA Approval; 10 to 2 AWG Stranded (Copper) Conductor Size; 1/2 Inch Rod Size; RoHS Compliant; TYPE GRL Model
• Manufacturer: Burndy Products
• Manufacturer Brand: Burndy Products
• Proposition 65 Warning (Ca): Warning: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
• Sub Category: Conduit To Rod Clamp
• Unspsc: 39121408
• UPC 12 Digit: 781810051818
• SKU Name: grl4 burndy

Resources

• Technical Drawing
• Technical Line Drawing
• Manufacturer Spec Sheet
