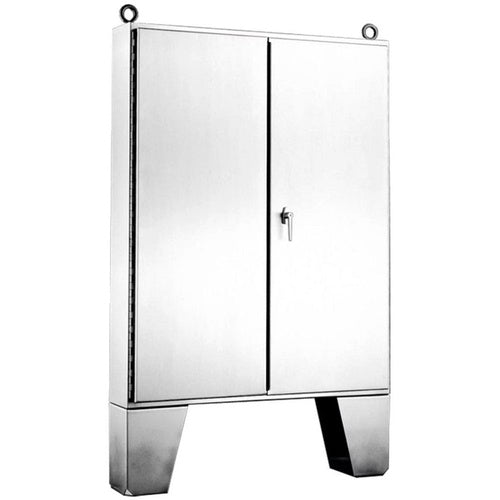

Hoffman A604820SSLP 2-Door Floor-Mount Type 12 Enclosure 60.06X48.06X20.06 Stainless Steel Type 304

Overview

Hoffman A604820SSLP 2-Door Floor-Mount Type 12 Enclosure 60.06X48.06X20.06 Stainless Steel Type 304

Product Specifications

• Full Technical Description: Two Door Type; 304 Stainless Steel Material; Smooth Brushed Finish; 48.06 Inch; 48.06 Width in Inch; 60.06 Inch; 60.06 Height in Inch; 20.06 Inch; 1525.52 Height in mm; UL 508, CSA, JIC Approval; Floor Mounting; NEMA 12, IP55 Enclosure; 12 Gauge Material Specification; (2) 12 Inch Legs Mounting Hardware; Two Door Single Access; A-60P48 Back Panel; Heavy Gauge Continuous Hinge, 3 Point Latch With Roller and Key Locking Handle, Overlapping Gasketed Door Mounting; HOFFMAN[R] Brand; Applicable Standard IEC 60529; Application Component; Environmental Conditions Corrosive, Dirt, Dust, Oil, Water; Inclusion (1) Body Stiffener, Collar Stud, Lifting Eye, Thermoplastic Data Pocket; Panel Color White; Panel Size 44 Inch Width X 56 Inch; Height in Inch - Uom in; Height in mm - Uom mm; Width in Inch - Uom in
• Manufacturer: NVENT HOFFMAN
• Sub Category: Multipurpose Floor Mount Enclosure
• Unspsc: 39121301
• UPC 12 Digit: 783510842208
• SKU Name: hoff a604820sslp

Resources

• Manufacturer Spec Sheet
