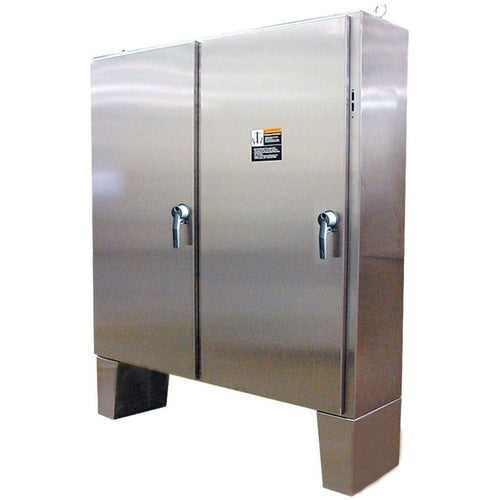

Hoffman A60CPX4812SSLPN4 2-Door Cp Disconnect N4X Enclosure 60.12X48.50X12.12 Stainless Steel Type 304

Overview

Hoffman A60CPX4812SSLPN4 2-Door Cp Disconnect N4X Enclosure 60.12X48.50X12.12 Stainless Steel Type 304

Product Specifications

• Full Technical Description: Flange Mount Circuit Breaker/Disconnect Switch Type; Stainless Steel Material; #4 Brushed Side/Body Finish; 48.5 Inch; 48.5 Width in Inch; 60.12 Inch; 60.12 Height in Inch; 12.12 Inch; 12.12 Depth in Inch; 1527.048 Height in mm; 1231.9 Width in mm; 307.848 Depth in mm; UL 508, UL 508-A, CSA, JIC EGP-1-1967 Approval; Floor Mounting; 10 Gauge Material Specification; 15 Inch Floor Stands Mounting Hardware; Two Door Single Access; A60P48, Not Included Back Panel; Heavy Gauge Continuous Hinged, 3 Point Latch, Gasketed Door Mounting; HOFFMAN[R] Brand; Center Post; Includes Thermoplastic Data Pocket; Depth in Inch - Uom in; Depth in mm - Uom mm; Height in Inch - Uom in; Height in mm - Uom mm; Width in Inch - Uom in; Width in mm - Uom mm
• Manufacturer: NVENT HOFFMAN
• Sub Category: Floor Mount Disconnect Enclosure
• Unspsc: 39121301
• UPC 12 Digit: 783510111083
• SKU Name: hoff a60cpx4812sslpn4

Resources

• Manufacturer Spec Sheet
