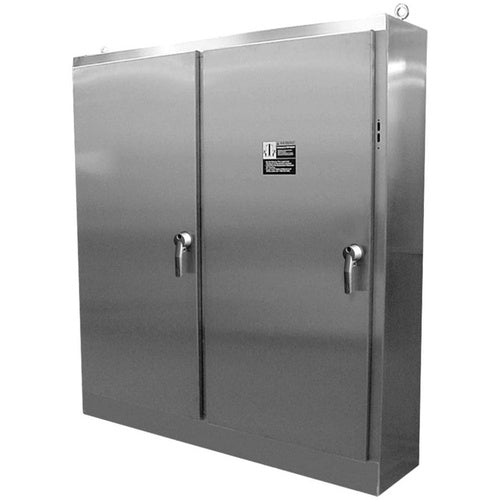

Hoffman A72XM3418SSN4 Disconnect Enclosure 1-Dr. F.S., N4X 72.12X34.25X18.12 Stainless Steel Type 304

Overview

Hoffman A72XM3418SSN4 Disconnect Enclosure 1-Dr. F.S., N4X 72.12X34.25X18.12 Stainless Steel Type 304

Product Specifications

• Full Technical Description: Heavy Duty Free Standing, Flange Mount Circuit Breaker/Disconnect Switch Type; Stainless Steel Material; #4 Brushed Side/Body Finish; White Panel Color; 34.25 Inch; 34.25 Width in Inch; 72.12 Inch; 72.12 Height in Inch; 18.12 Inch; 18.12 Depth in Inch; 1831.848 Height in mm; 869.95 Width in mm; 460.248 Depth in mm; UL 508, UL 508-A, CSA, JIC EGP-1-1967, JIC EMP-1-1967 Approval; Floor Mounting; 10 Gauge Material Specification; One Door Single Access; Heavy Gauge Continuous Hinged, 3 Point Latch, Padlockable Handle, Gasketed Door Mounting; HOFFMAN[R] Brand; Right Flange; Includes Thermoplastic Data Pocket; Depth in Inch - Uom in; Depth in mm - Uom mm; Height in Inch - Uom in; Height in mm - Uom mm; Width in Inch - Uom in; Width in mm - Uom mm
• Manufacturer: NVENT HOFFMAN
• Sub Category: Floor Mount Disconnect Enclosure
• Unspsc: 39121301
• UPC 12 Digit: 783510111151
• SKU Name: hoff a72xm3418ssn4

Resources

• Manufacturer Spec Sheet
